PETG Single Use Bottle Assemblies

Custom Assembly Solutions

Single-Use Bottle Assembly Solutions

Ace Sanitary PETG bottle assemblies provide a process-ready solution for sampling, storage, production, and laboratory workflows in pharmaceutical, biotechnology, life sciences, and other controlled environments. Each single use bottle assembly integrates a bottle, cap, tubing, and specified connections into a convenient configuration, reducing the number of components teams must source and assemble. The resulting closed-system design helps reduce contamination risk while supporting efficient setup, transfer, and disposal.

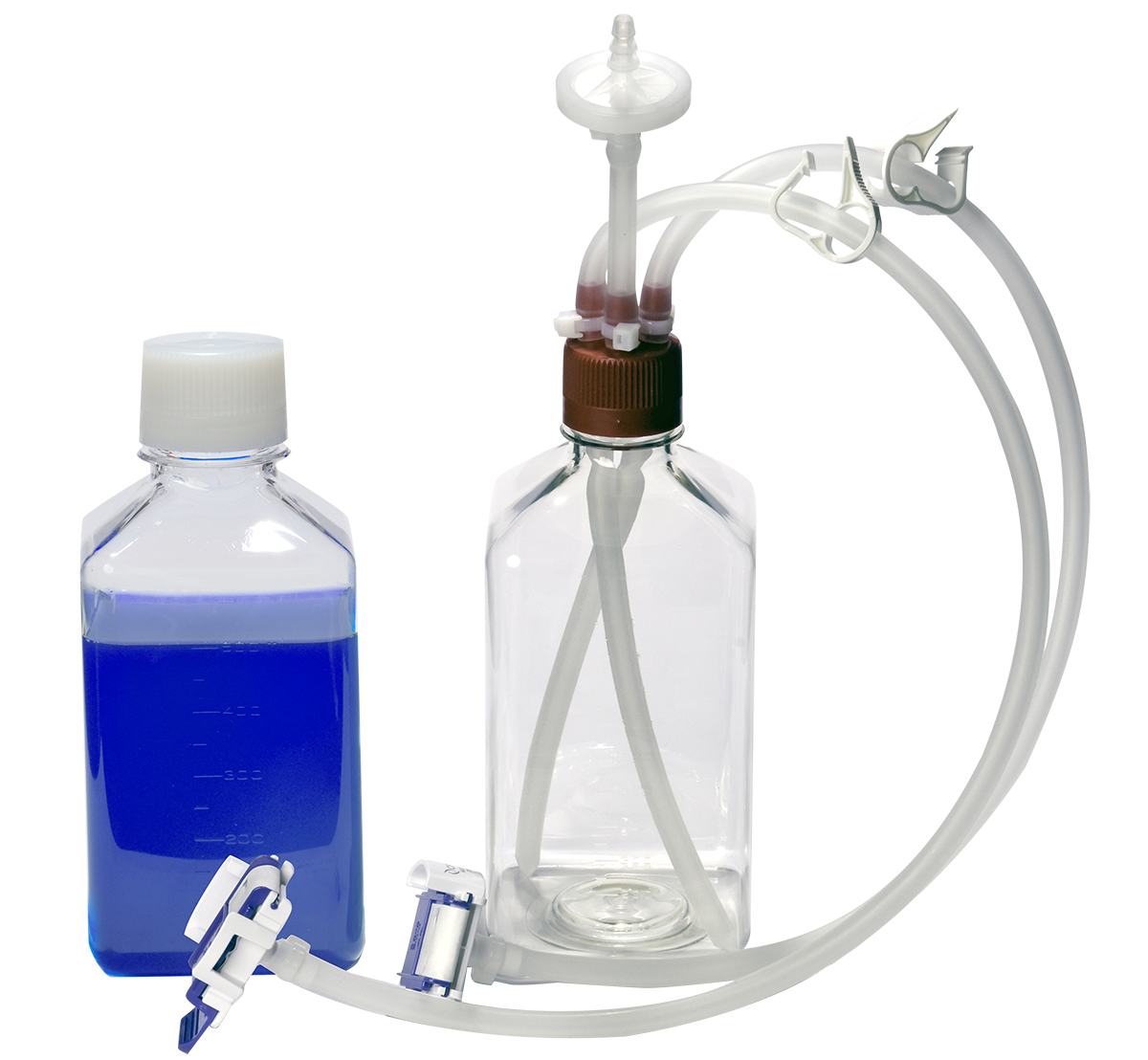

Single-Use Bottle and Cap Assembly

Key Features

Product Datasheet
Key Features
  • Multiple bottle sizes allow for process-specific flexibility
  • Cap assemblies are available in 2 and 3-port configurations with 38-430 neck sizes which can be used on most commercially available bottles
  • Cap assemblies in customized size, length, connections, and components, with notched dip tubes
  • Cap assemblies come individually double-bagged and process-ready with labels on the inner bag
  • Gamma Irradiation 25kGy to 45kGy for microbial control
  • Sterility Assurance 10-6
Industry and Application
  • Production
  • Cleanroom
  • Sampling and Storage
  • Laboratory
  • Environmental
  • Life Sciences
Certifications
  • USP materials
  • ADFC Animal Derived Component Free
  • RoHS
  • USP 87
  • DEHP Phthalate Free
  • BPA Free
  • Latex Free
  • Non-Pyrogenic
  • Non-Toxic
  • DNase/RNase-Free

PETG Bottles for Controlled Fluid Transfer

PETG offers the clarity needed to visually monitor contents while providing dependable performance for bioprocess applications. Multiple bottle sizes give teams the flexibility to select a configuration suited to small-volume sampling, intermediate storage, or production requirements. The available size charts below provide specifications for standard and gamma-irradiated PETG bottles.

Material selection should reflect the process, sterilization method, fluid compatibility, and applicable regulatory requirements. Although PETG is the primary material offered on this page, PETG, PP, HDPE, and PC materials have different performance characteristics. Customers evaluating polycarbonate or other alternatives should work with Ace Sanitary to confirm the appropriate material and configuration for their application.

Custom Caps, Ports, Tubing, and Connections

Ace Sanitary offers custom bottle assemblies with two- or three-port cap configurations for 38-430 neck sizes used on many commercially available bottles. Port layouts can be configured around the intended workflow, including product transfer, venting, sampling, or dip-tube access. Notched dip tubes, customized tubing lengths, component selections, and connection types are also available.

Integrated tubing and hygienic fittings help create a more complete fluid transfer path while simplifying installation. Tubing material and connection method should be chosen according to chemical compatibility, sterilization requirements, and the equipment used within the process. When sterile welding or sealing is required, compatible tubing can be specified as part of the assembly. Ace Sanitary can also help determine whether connectors, clamps, valves, or other components are appropriate for the intended system.

Sterility, Traceability, and Process Readiness

Assemblies are available with gamma irradiation from 25 kGy to 45 kGy for microbial control and a sterility assurance level of 10⁻⁶. Each assembly is individually double-bagged and supplied process-ready, with identification labels on the inner bag. These features help support cleanroom transfer, lot tracking, and controlled introduction into regulated processing environments.

Available configurations incorporate USP compliant materials and may support additional requirements listed in the Certifications section below, including animal-derived-component-free, RoHS, USP 87, DEHP-free, BPA-free, latex-free, non-pyrogenic, non-toxic, and DNase/RNase-free options. Customers should request the applicable material certificates, irradiation records, and compliance documents needed for their validation protocols.

Made-to-Order Support From Ace Sanitary

Ace Sanitary provides made-to-order bottle assemblies for upstream and downstream processing, sampling, storage, laboratory work, and closed fluid transfer. Configurations can be tailored by bottle size, tubing length, number of ports, dip-tube design, connections, components, and labeling requirements. With no minimum order quantities, fast lead times, and expedited quoting, customers can order the configuration their process requires without committing to unnecessary volume.

Review the Available Sizes and Certifications sections below, or contact Ace Sanitary to request a quote and discuss a custom assembly with our team.

Available Sizes

Single-Use PETG Bottles
PETG Bottle Part NumberDescription
SUPETG60ML60ML (2oz) PETG Bottle Solid PP Cap
SUPETG125ML125ML (4oz) PETG Bottle Solid PP Cap
SUPETG250ML250ML (8oz) PETG Bottle Solid PP Cap
SUPETG500ML500ML (16oz) PETG Bottle Solid PP Cap
SUPETG1L1L (32oz) PETG Bottle Solid PP Cap
SUPETG2L2L (64oz) PETG Bottle Solid PP Cap
SUPETL60ML-PK2460ML (2oz) PETG Bottle Solid PP Cap Pack of 24
SUPETG125ML-PK24125ML (4oz) PETG Bottle Solid PP Cap Pack of 24
SUPETG250ML-PK30250ML (8oz) PETG Bottle Solid PP Cap Pack of 30
SUPETG500ML-PK24500ML (16oz) PETG Bottle Solid PP Cap Pack of 24
SUPETG1L-PK121L (32oz) PETG Bottle Solid PP Cap Pack of 12
SUPETG2L-PK62L (64oz) PETG Bottle Solid PP Cap Pack of 6
SUPETG60ML-CS19260ML (2oz) PETG Bottle Solid PP Cap Case of 192
SUPETG125ML-CS96125ML (4oz) PETG Bottle Solid PP Cap Case of 96
SUPETG250ML-CS60250ML (8oz) PETG Bottle Solid PP Cap Case of 60
SUPETG500ML-CS48500ML (16oz) PETG Bottle Solid PP Cap Case of 48
SUPETG1L-CS241L PETG (32oz) Bottle Solid PP Cap Case of 24
SUPETG2L-CS122L PETG (64oz) Bottle Solid PP Cap Case of 48
Gamma Irradiated PETG Bottles (SAL 10⁻⁶)
Gamma Irradiated PETG Bottle Part NumberDescription
SUPETG60ML-SAL60ML (2oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG125ML-SAL125ML (4oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG250ML-SAL250ML (8oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG500ML-SAL500ML (16oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG1L-SAL1L (32oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG2L-SAL2L (64oz) PETG Bottle Solid PP Cap Gamma Irradiated
SUPETG125ML-PK24-SAL125ML (4oz) PETG Bottle Solid PP Cap Pack of 24 Gamma Irradiated
SUPETG250ML-PK30-SAL250ML (8oz) PETG Bottle Solid PP Cap Pack of 30 Gamma Irradiated
SUPETG500ML-PK24-SAL500ML (16oz) PETG Bottle Solid PP Cap Pack of 24 Gamma Irradiated
SUPETG125ML-CS96-SAL125ML (4oz) PETG Bottle Solid PP Cap Case of 96 Gamma Irradiated
SUPETG500ML-CS48-SAL500ML (16oz) PETG Bottle Solid PP Cap Case of 48 Gamma Irradiated
SUPETG1L-CS24-SAL1L PETG (32oz) Bottle Solid PP Cap Case of 24 Gamma Irradiated

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
