ISH Steam

Washdown Hose with EPDM Cover and Chlorobutyl Tube

Built to withstand the toughest conditions, the ISH Steam hose is rugged, abrasion- and blister-resistant—ideal for cleaning pumps, valves, tubing, and equipment in demanding steam applications. It maintains flexibility and integrity without hardening or cracking during normal service. Designed for safety and reliability, it handles steam pressures up to 250 PSI at temperatures up to 430°F.

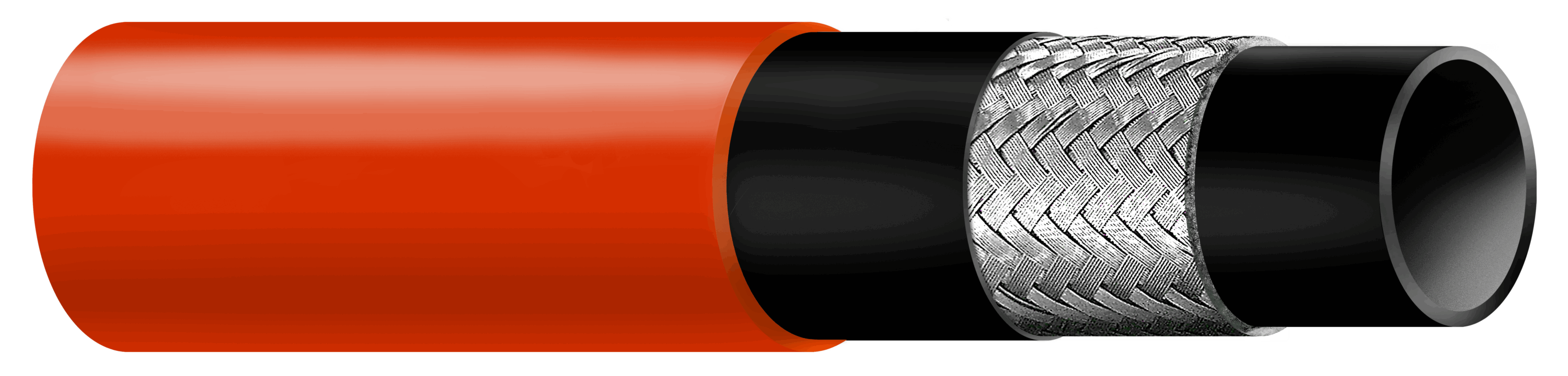

This hose features a specially formulated tube and cover, reinforced with steel wire for added strength and durability in high-temperature, high-pressure environments.

Key Features

Product Datasheet

Key Features
  • Tube: Black Chlorobutyl
  • Reinforcement: Steel braid
  • Cover: White Red EPDM
  • Temperature Range: -40° to +430° F
Industry and Application
  • Great Food Grade Transfer Hose
  • Pump Suction & Discharge
  • Receiving Bay
  • Metal Detection System
  • High Traffic
Available Sizes
MODELI.D.O.D.WORKING PRESSUREWEIGHT PER FT.
ISH0750.75"1.25"250 PSI.48 lbs"
Steam Hose Safety & Precautions

Working with steam can be very hazardous. Safety precautions should be observed when handling to minimize or eliminate personal injury or property damage.

Selection and Use of Steam Hoses
  • Make sure steam hose is identified as a steam hose. It should be identified, have a working pressure and temperature rating.
  • Make sure working pressure and temperature is not exceeded.
  • Do not allow hose to remain under pressure when not in use.
  • Avoid excess bending or flexing of hose near the coupling. Straight line operation is preferred. If bends are necessary as part of operation, spring guards may help.
Maintenance Procedures
  • Periodic inspection of hose should include looking for blisters and lumps.
  • Check for kinked areas that could damage hose.
  • Drain hose after each use to avoid tube damage before hose is put in operation to avoid “pop corning” of the tube.
  • Do not store hose over hooks.
  • Steam hose lying on metal racks or installed around steel piping will dry out the hose, causing cover cracking.
