TEF-STEEL Tri-Clamp

PTFE Encapsulated Stainless Steel Gaskets

About Our TEF-STEEL Products

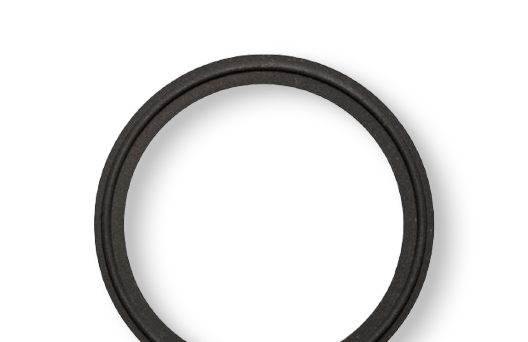

Tef-Steel gaskets are manufactured from a PTFE and SS powder and then sintered (cooked).  There are no layers, the gasket is grey because the powder mixes *white PTFE and Gray SS.

Tef-Steel Tri-Clamp Gaskets offer superior chemical resistance and a broader temperature range due to their Teflon-encapsulated stainless steel construction. The outer layer is Teflon (PTFE), while the core is stainless steel, providing a durable and chemically resistant construction. These gaskets are manufactured with precision and ensure a high level of sanitation and product purity.

  • The stainless steel enhances the gasket’s resistance to aggressive chemicals and corrosive substances.
  • Can withstand a wider range of temperatures due to the stainless steel core, suitable for both high and low-temperature processes.
  • Offers a smooth surface, which facilitates easy cleaning and minimizes the risk of product adhesion.
  • Preferred for applications where higher chemical resistance and broader temperature ranges are required, such as in pharmaceuticals and certain chemical processes.
  • Preferred for High temperature environments including steam service

Key Features

Key Features
  • Temperature Rating: -300°F to 500°F
  • Good steam resistance – very low swell and minimal loss of physical properties after repeated steam cycling
  • Good chemical resistance – very low swell and minimal loss of physical properties after long-term exposure to CIP media
  • Clean and easy removal of gaskets – no sticking to the flanges
  • Low extractable values
  • Excellent dimensional stability
  • Very low compression set for best sealing performance
  • Class VI 87 & 88
Available Sizes
PART NUMBERDESCRIPTION
42MPGST-1/2SP.50in Tef-Steel Tri-Clamp Gasket
42MPGST-3/4SP.75in Tef-Steel Tri-Clamp Gasket
40MPGST-1SP1in Tef-Steel Tri-Clamp Gasket
40MPGST-1.5SP1.5in Tef-Steel Tri-Clamp Gasket
40MPGST-2SP2in Tef-Steel Tri-Clamp Gasket
40MPGST-2.5SP2.5in Tef-Steel Tri-Clamp Gasket
40MPGST-3SP3in Tef-Steel Tri-Clamp Gasket
40MPGST-4SP4in Tef-Steel Tri-Clamp Gasket
40MOGST-55in Tef-Steel Tri-Clamp Gasket
40MOGST-6SP6in Tef-Steel Tri-Clamp Gasket
40MOGST-8SP8in Tef-Steel Tri-Clamp Gasket
40MOGST-10SP10in Tef-Steel Tri-Clamp Gasket
40MOGST-12SP12in Tef-Steel Tri-Clamp Gasket
