Platinum Cured Safe Guard Tri-Clamp

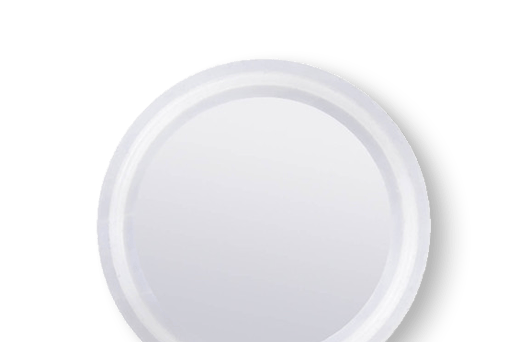

Platinum Cured Silicone Safe-Guard Gaskets

About Our Platinum Cured Safe-Guard Products

Made from premium platinum-cured silicone, which guarantees they are free from harmful additives like peroxides or plasticizers that could contaminate the processed materials. These gaskets exhibit excellent resistance to high temperatures, chemicals, and microbial growth, safeguarding the purity of the final products. these specialized gaskets ensures a secure seal between fittings, preventing leaks that might compromise product quality or result in wastage.

  • These gaskets are made with an additional feature called “Gauge Safe-Guard” or “Gauge Guard.”
  • The Gauge Safe-Guard is a raised rib or ridge around the gasket’s inner circumference, providing an extra layer of protection for pressure and temperature-sensitive instruments like gauges, sensors, or sight glasses.
  • The presence of the Gauge Safe-Guard helps shield these delicate instruments from direct contact with the process media, reducing the risk of damage or inaccurate readings caused by pressure or temperature fluctuations during operations.
  • These gaskets are commonly used in applications where there is a need to monitor or measure the process conditions while maintaining a secure and sanitary seal.

Key Features

Key Features
  • 1/2″ and 3/4″ elastomers have .015″ membrane thickness
  • 1″, 1-1/2″, and 2″ elastomers have .012″ membrane thickness
  • Manufactured to extend gauge life
  • Will not interfere with gauge operation or accuracy
  • USP Class VI, 87 & 88
  • Compliant with FDA regulations CFR 21 177 2600
  • Animal derived ingredient free (ADI)
  • Class VI clean room packed
  • Phthalate Free
Available Sizes
PART NUMBERDESCRIPTION
42GSGX-3/4.75in Platinum Silicone Gauge Guard Isolator Gasket
40GSGX-11in Platinum Silicone Gauge Guard Isolator Gasket
40GSGX-1.51.5in Platinum Silicone Gauge Guard Isolator Gasket
40GSGX-22in Platinum Silicone Gauge Guard Isolator Gasket

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
