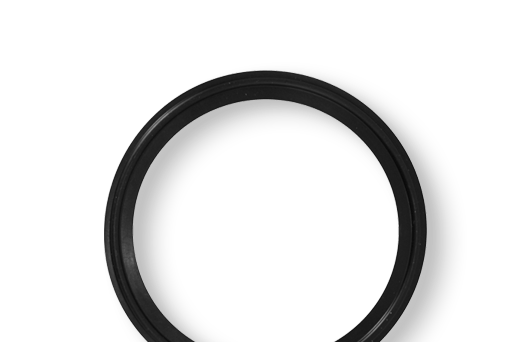

FKM Tri-Clamp

Fluorocarbon Rubber Gaskets

About Our FKM Tri-Clamp Products

FKM gaskets are made from high-quality FKM (Fluorocarbon Rubber) material, ensuring exceptional chemical resistance, preventing contamination and maintaining product purity. They also exhibit excellent temperature and pressure resistance, making them ideal for a wide range of applications, from high-temperature food processing to pharmaceutical production.

  • FKM is a synthetic rubber known for its excellent chemical resistance, high-temperature tolerance, and resistance to oils and solvents. It is particularly suitable for applications involving aggressive chemicals or elevated temperatures.
  • FKM gaskets have superior chemical resistance, making them suitable for use with a wide range of chemicals, acids, and solvents, which is essential in industries like chemical processing or oil and gas.
  • FKM gaskets can withstand a broader range of temperatures, typically from -20°C (-4°F) to 200°C (392°F) or even higher depending on the specific FKM formulation.
  • FKM gaskets are commonly used in industrial applications involving aggressive chemicals, high temperatures, and demanding environments.

Key Features

Key Features
  • Highest purity of products – peroxide cured
  • Suitable for SIP and CIP
  • Good steam resistance – very low swell and minimal loss of physical properties after repeated steam cycling
  • Good chemical resistance – very low swell and minimal loss of physical properties after long-term exposure to CIP media
  • Clean and easy removal of gaskets – no sticking to the flanges
  • Low extractable values
  • Excellent dimensional stability
  • Very low compression set for best sealing performance
  • Also available in Type II
  • Class VI 87 & 88
Available Sizes
PART NUMBERDESCRIPTION
42MPSFY-1/2.50in Black FKM Fluoroelastomer Tri-Clamp Gasket
42MPSFY-3/4.75in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-11in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-1.51.5in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-22in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-2.52.5in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-33in Black FKM Fluoroelastomer Tri-Clamp Gasket
40MPSFY-44in Black FKM Fluoroelastomer Tri-Clamp Gasket

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
