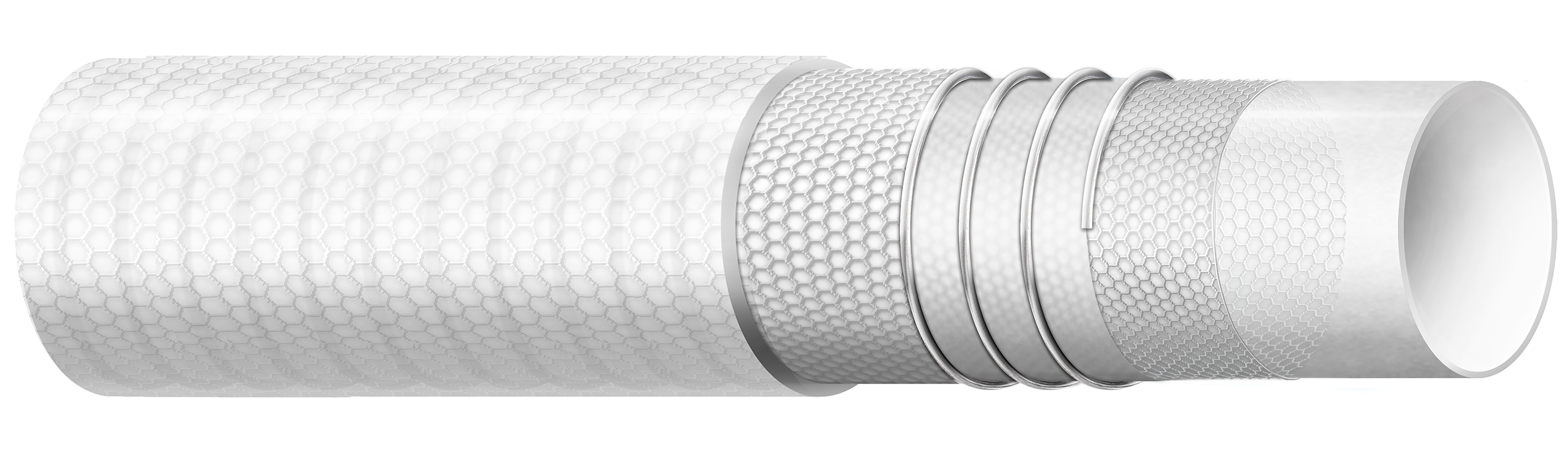

SXW

Wire-Reinforced Platinum Cured Silicone Hose

The SXW 316L stainless steel wire has low force-to-bend capabilities and a highly flexible suction, vacuum, and delivery hose. Our phthalates-free tubes are well-suited for pharmaceutical, cosmetic, and food products transfer. The SXW is reinforced with 316 stainless steel wire to ensure a balance between strength and lightness.

SXW is a wire-reinforced platinum cured silicone hose that is cleanroom manufactured. The 316SS wire creates a low force to bend and allows for full suction. SXW’s Phthalate free tube is well suited for Pharmaceutical and Bio-Tech product transfer.

Key Features

Product Datasheet

Key Features

Platinum Cured
Smooth Translucent Silicone
Lot Traceability
Phthalates Free
Easily Placed or Repositioned
Full Temperature Range
Ozone / Abrasion Resistant Cover
Longer lengths Reduce Scrap

Industry and Application

Cosmetics
Pharmaceutical
Biotech
Food Products

Available Sizes

MODEL	I.D.	O.D.	WORKING PRESSURE	MIN. BEND RADIUS	WEIGHT PER FOOT	VACUUM IN HG
SXW050	0.5"	.94"	150 PSI	1.5"	.31 lbs.	29
SXW075	0.75"	1.18"	150 PSI	2.0"	.40 lbs.	29
SXW100	1.0"	1.42"	150 PSI	2.5"	.49 lbs.	29
SXW125	1.25''	1.71''	137 PSI	3.5''	.65 lbs.	29
SXW150	1.5"	2.00"	125 PSI	4.5"	.81 lbs.	29
SXW200	2.0"	2.52"	110 PSI	5.5"	1.05 lbs.	29
SXW250	2.5"	3.09"	85 PSI	7.0"	1.55 lbs.	29
SXW300	3.0"	3.58"	70 PSI	9.0"	1.82 lbs.	29
SXW400	4.0"	4.61"	50 PSI	14.5"	2.38 lbs.	29

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Work pressure ratings for all Flex-Rite™ brand hoses are based on 70 Degree F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” series applications that exceed 200 Degrees F, contact the manufacturer for suggestions.
