SSD

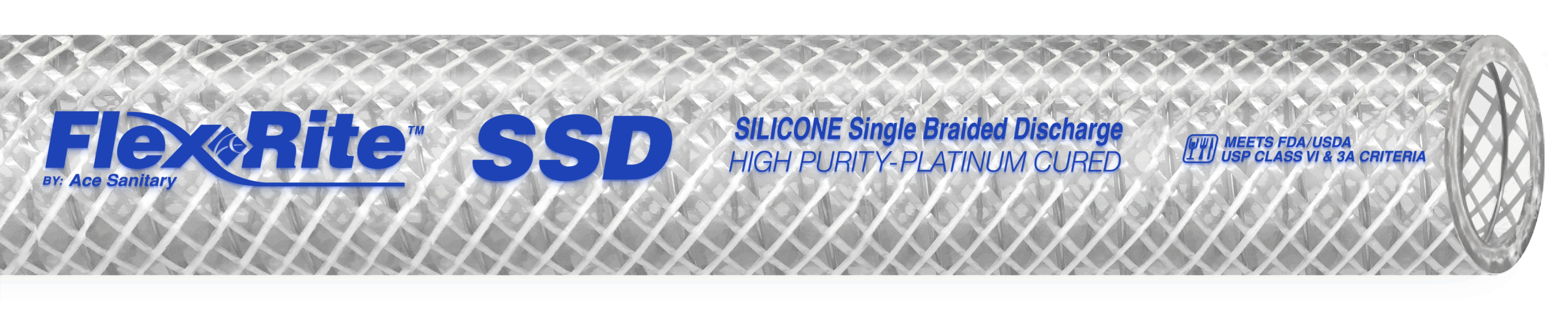

Single Braid Reinforced Silicone Hose

This hose is made to handle mid-range pressures while providing excellent resistance to weathering and extreme temperatures. Its reinforced construction offers durability and flexibility, making it ideal for demanding sanitary applications in pharmaceutical, food, and beverage processing. Fully compliant with 3-A, USDA, and FDA standards, it ensures safe and reliable fluid transfer.

Manufactured with pharmaceutical-grade silicone elastomer, this hose is reinforced with standard polyester braid to deliver strength without compromising performance.

About Our SSD

Our single braid reinforced silicone hose is processed with pharmaceutical grade elastomer and manufactured for mid-range pressures. We use standard polyester or Nomex braid. This hose is compliant with 3A, USDA, and FDA standards. The design is weather-resistant and can withstand extreme temperatures.

Polyester braid reinforced platinum cured silicone hose manufactured to resist weathering and temperature extremes, excellent for mid – range pressure applications. Compliant with USDA, FDA, 3A, and USP Class VI standards.

Product Datasheet

Standard Features

Ultra Flexible
Light Weight
Sterilizable
Autoclavable
Rated for Higher Pressure
Platinum Cured
Braid Reinforced
Lot Number Traceability
High Temperature Rated

Available Sizes

Model	I.D.	O.D.	Working Pressure	Min. Bend Radius	Weight/ft.	Vacuum inch HG	Length
SSD025	.25"	.52"	140 PSI	1.0"	0.09lbs	Not Applicable	50'
SSD037	.37"	.66"	135 PSI	1.5"	0.13lbs	Not Applicable	50'
SSD050	.5"	.80"	100 PSI	3.0"	0.18lbs	Not Applicable	50'
SSD062	.62"	.97"	100 PSI	3.5"	0.22lbs	Not Applicable	50'
SSD075	.75"	1.10"	90 PSI	4.0"	0.26lbs	Not Applicable	50'
SSD100	1.0"	1.36"	60 PSI	6.0"	0.31lbs	Not Applicable	50'

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “S” Series applications that exceed 250° F contact manufacturer for suggestions.
