RSDB

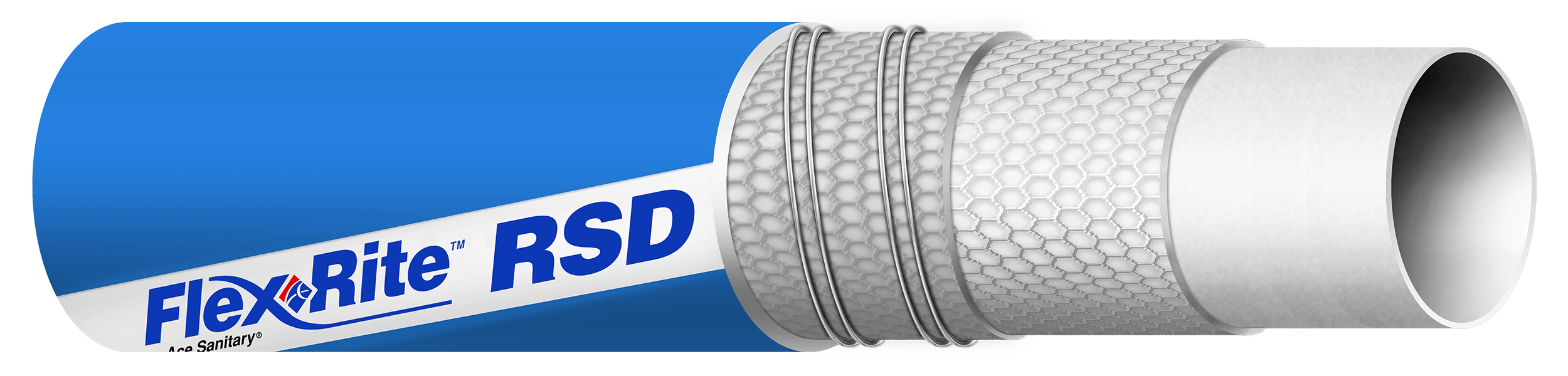

EPDM Blue Cover with Chlorobutyl Tube - Suction & Discharge Hose

This hose delivers outstanding versatility to meet a wide range of product and application needs. It offers excellent flexibility and easy handling thanks to a reinforced dual wire helix, making it ideal for demanding operational environments. Rated for use up to 150 PSI, it withstands high temperatures and resists common CIP (Clean-in-Place) solutions, all while maintaining product purity without imparting taste or odor. Fully compliant with 3-A Sanitary Standard 18-03, USDA regulations, and FDA requirements, it ensures safe and reliable performance in sanitary settings.

Constructed with a specially formulated chlorobutyl tube and an EPDM cover, this hose combines durability and chemical resistance for long-lasting use.

Key Features

Key Features
    • High/Low Volume Suction & Transfer
    • Multiple Colors for Dedicated Services
    • Dual Helix
    • Highly Flexible
Industry and Application
  • Pump Suction & Discharge
  • CIP
  • Receiving Bay
  • Load Cell
  • Flow Panel
  • Filling Machines
  • Railcar
  • Glycol Transfer
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
RSDB1501.5"2.06"150 PSI4.0"1.03 lbs.29"
RSDB2002.0"2.57"150 PSI4.5"1.32 lbs.29"
RSDB2502.5"3.12"150 PSI5.5"1.84 lbs.29"
RSDB3003.0"3.74"150 PSI7.0"2.55 lbs.29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” Series applications that exceed 200° F, contact the manufacturer for suggestions.

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
