RSD

EPDM Cover with Chlorobutyl Tube - Suction & Discharge Hose

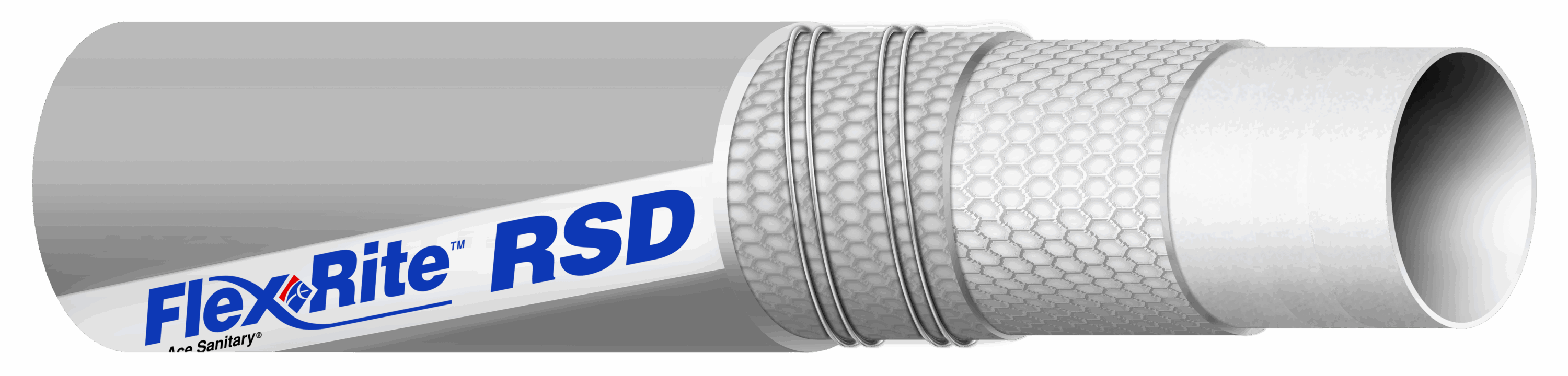

RSD hose offers exceptional flexibility and ease of handling thanks to its dual wire helix design. Engineered to withstand high temperatures and resist common CIP (Clean-in-Place) solutions, it ensures no taste or odor transfer, preserving product quality. Its versatile construction makes it suitable for a wide range of products and application requirements, meeting the strictest sanitary standards.

This hose features a specially compounded chlorobutyl tube and an EPDM cover, and it complies with 3-A 18-03 standards, USDA requirements, and FDA regulations.

Key Features

Product Datasheet

Key Features

High/Low Volume Suction & Transfer
Multiple Colors for Dedicated Services
Dual Helix
Highly Flexible

Industry and Application

Pump Suction & Discharge
CIP
Receiving Bay
Load Cell
Flow Panel
Filling Machines
Railcar
Glycol Transfer

Available Sizes

MODEL	I.D.	O.D.	WORKING PRESSURE	MIN. BEND RADIUS	WEIGHT PER FT.	VACUUM INCH HG
RSD050	.5"	1.00"	150 PSI	2.0"	.32 lbs.	29"
RSD075	.75"	1.25"	150 PSI	2.0"	.57 lbs.	29"
RSD100	1.0"	1.50"	150 PSI	3.0"	.91 lbs.	29"
RSD150	1.5"	2.06"	150 PSI	4.0"	1.03 lbs.	29"
RSD200	2.0"	2.57"	150 PSI	4.5"	1.32 lbs.	29"
RSD250	2.5"	3.12"	150 PSI	5.5"	1.84 lbs.	29"
RSD300	3.0"	3.74"	150 PSI	7.0"	2.55 lbs.	29"
RSD400	4.0"	4.77"	150 PSI	10.0"	3.51 lbs.	29"
RSD600	6.0"	6.75"	150 PSI	22.0"	5.42 lbs.	29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” Series applications that exceed 200° F, contact the manufacturer for suggestions.
