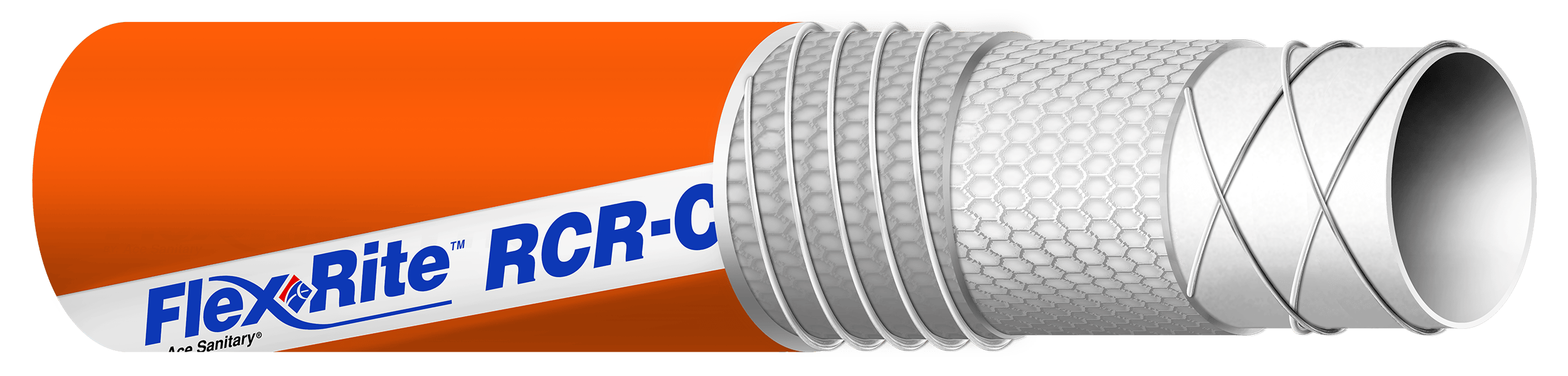

RCR-C

EPDM Cover with Chlorobutyl Tube - Grounded

RCR-C offers the same durable, crush-resistant performance as our standard RCR hose—plus enhanced safety for environments where static discharge is a concern. Made for versatility and reliability, it features two multi-strand copper wires for secure grounding, delivering added protection and peace of mind during liquid transfer operations. Ideal for high-traffic, sanitary environments, it maintains flow integrity even when kinked or compressed.

Constructed with a chlorobutyl tube and EPDM cover, RCR-C is grounded for safety and meets 3-A sanitary standards, USDA requirements, and is FDA compliant.



Key Features

Product Datasheet

Key Features
  • Tube: White, FDA, 3-A, Chlorobutyl
  • Reinforcement: Spiral-plied synthetic fabric with monofilament helix & copper wire
  • Recommended Cleaning: CIP, COP
  • Cover: Orange EPDM w/white stripe
  • Temperature Range: – 30° to 225° F
  • Compliance: USDA Class III requirements, FDA CFR Title 21 177.2600, 3-A 18-03
Industry and Application
  • Great Food Grade Transfer Hose
  • Pump Suction & Discharge
  • Receiving Bay
  • Metal Detection Systems
  • High Traffic
Available Sizes
CALL FACTORY FOR 2-1/2” SIZE INFORMATION
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HGLENGTH
RCR-C1501.5"2.11"250 PSI4.0".98 lbs.27"100'
RCR-C2002.0"2.68"250 PSI7.0"1.38 lbs.27"100'
RCR-C3003.0"3.85"250 PSI12.0"2.59 lbs.27"100'

ALL R-Series hose products meet/comply: USDA Class III requirements, FDA CFR Title 21.1772600, 3-A 18-03

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” Series applications that exceed 200° F, contact the manufacturer for suggestions.
