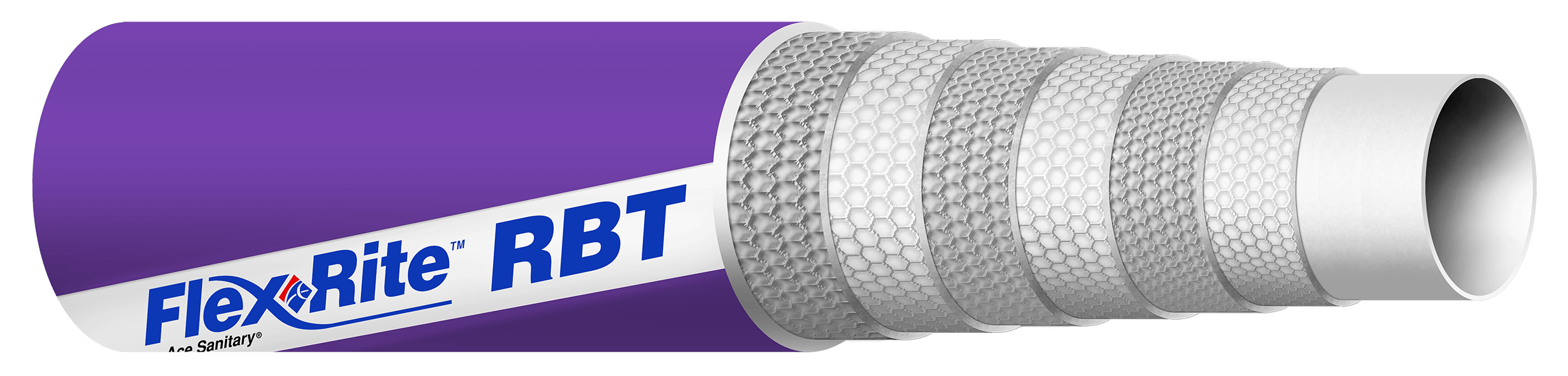

RBT

EPDM Cover and Tube - Beverage Transfer Hose

RBT is built to perform under pressure—literally. Made for demanding transfer applications in breweries, wineries, and dairies, it offers excellent durability and flow consistency. Its bounce-back design resists kinking and flattening, making it ideal for high-traffic areas where hoses are frequently stepped on or compressed. While it offers limited suction capability, its strength lies in high-pressure liquid transfer with minimal downtime or damage.

This hose features a durable EPDM liner and cover, engineered for long-lasting performance in sanitary liquid processing environments.



Key Features

Key Features
  • Tube: White FDA, 3-A, EPDM Liner
  • Reinforcement: Spiral-plied synthetic fabric 4 plies 1-1.5″ – 6 plies 2″ & over
  • Recommended Cleaning: CIP, COP
  • Cover: Purple EPDM w/white stripe
  • Temperature Range: -40° to 225° F
  • Compliance: USDA Class III requirements, FDA CFR Title 21 177.2600, 3-A 18-03
Industry and Application
  • Tank Transfers
  • Breweries
  • Wineries
  • Diaries
  • Pump Discharge
  • Receiving Bay
  • Metal Detection System
  • CIP (Clean-in-Place)
  • Higher Pressure Utility
  • High Traffic Areas
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
RBT1001.0"1.69"250 PSI4.0".74 lbs.20"
RBT1501.5"2.23"250 PSI5.5"1.10 lbs.20"
RBT2002.0"2.92"250 PSI6.5"1.84 lbs.20"
RBT3003.0"4.09"250 PSI10.0"3.57 lbs.20"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” Series applications that exceed 200° F, contact the manufacturer for suggestions.
