PHC

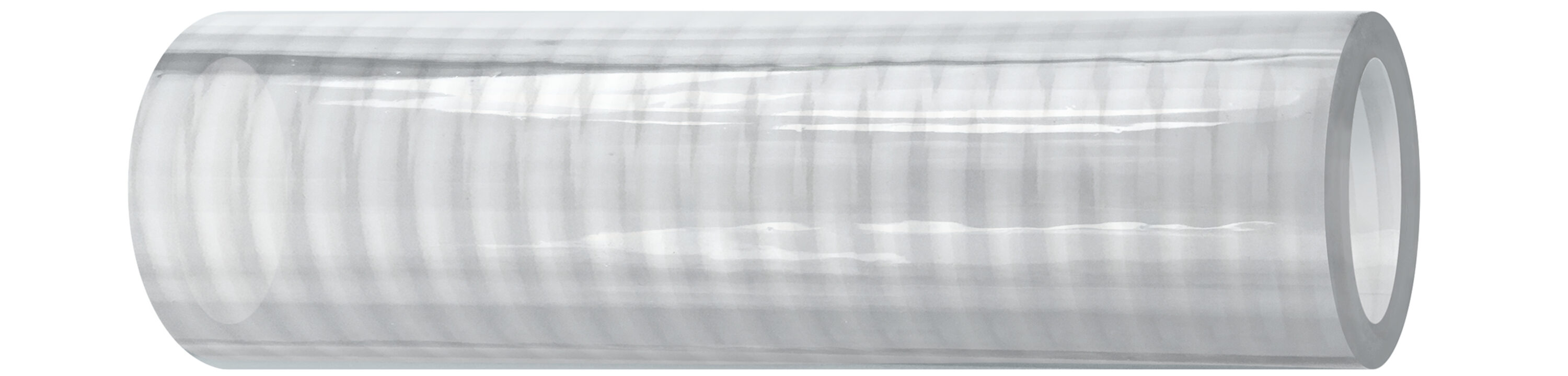

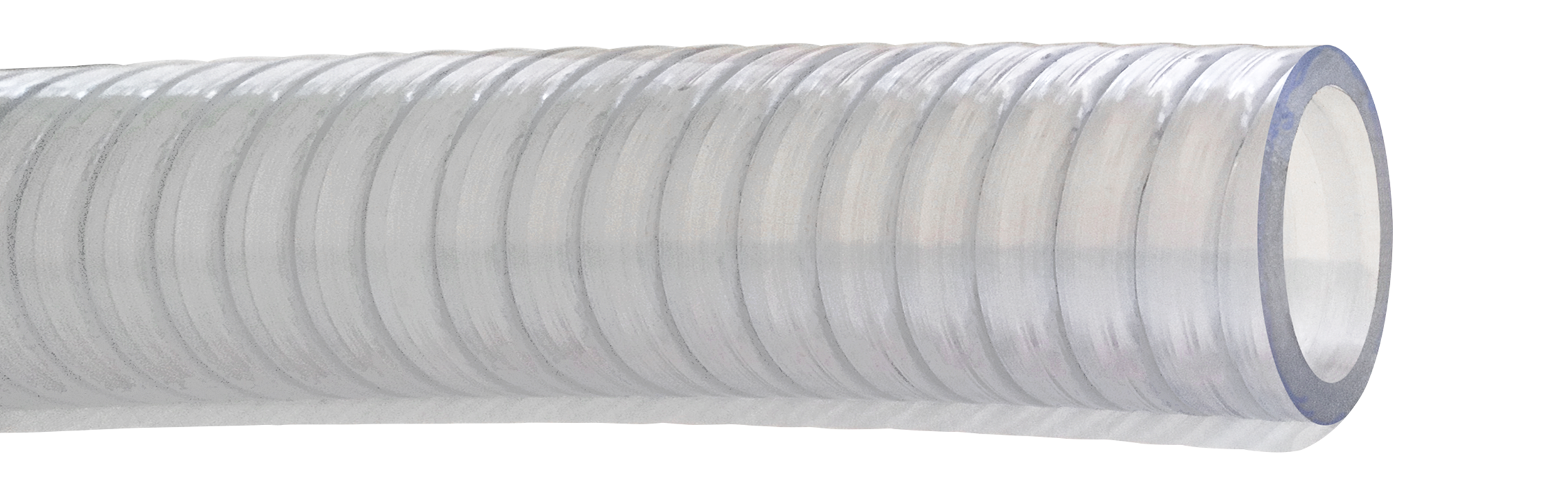

Clear Helix Rod Reinforced PVC Tubing

PHC hoses deliver exceptional low-temperature flexibility, making them ideal for demanding applications like milk hauling. The transparency allows for easy visual monitoring of product flow, while the clear helix reinforcement ensures strength, durability, and easy handling in cold conditions. Engineered for sanitary performance, PHC hoses meet strict food safety standards.

Constructed from a transparent extrusion and reinforced with a clear helix rod, PHC is fully compliant with 3-A sanitary standards, USDA requirements, and FDA regulations.

Key Features

Key Features
  • Light Weight
  • Clear Viewing of Product Flow
  • Highly Flexible
  • Phthalate FREE
  • Higher Working Pressures
  • Meets USP Guidelines for Class VI Plastics
Industry and Application
  • Food Grade Liquids
  • Beer, Wine & Juices
  • Potable Water
  • Poultry Processing
  • Milk & Dairy Transfer
  • Ice Transfer
  • Dry Transfer
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.
PHC1001.0"1.28"100 PSI3.0".24 lbs
PHC1501.5"1.80"85 PSI6.0".50 lbs
PHC2002.0"2.36"85 PSI8.0".71 lbs
PHC2502.5"2.88"65 PSI10.0".94 lbs
PHC3003.0"3.42"55 PSI11.0"1.14 lbs
PHC4004.0"4.51"50 PSI18.0"1.91 lbs

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.
*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70 ° F (ambient temperature).  Working pressure and vacuum ratings will decrease as temperatures increase.  For “P” Series applications that exceed 100° F, contact the manufacturer for suggestions.
