PBW

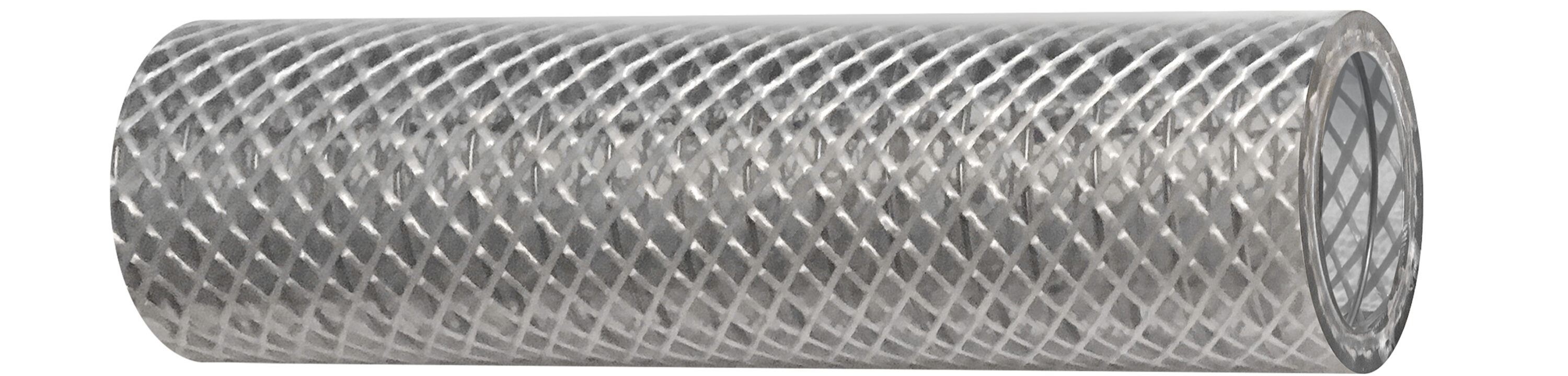

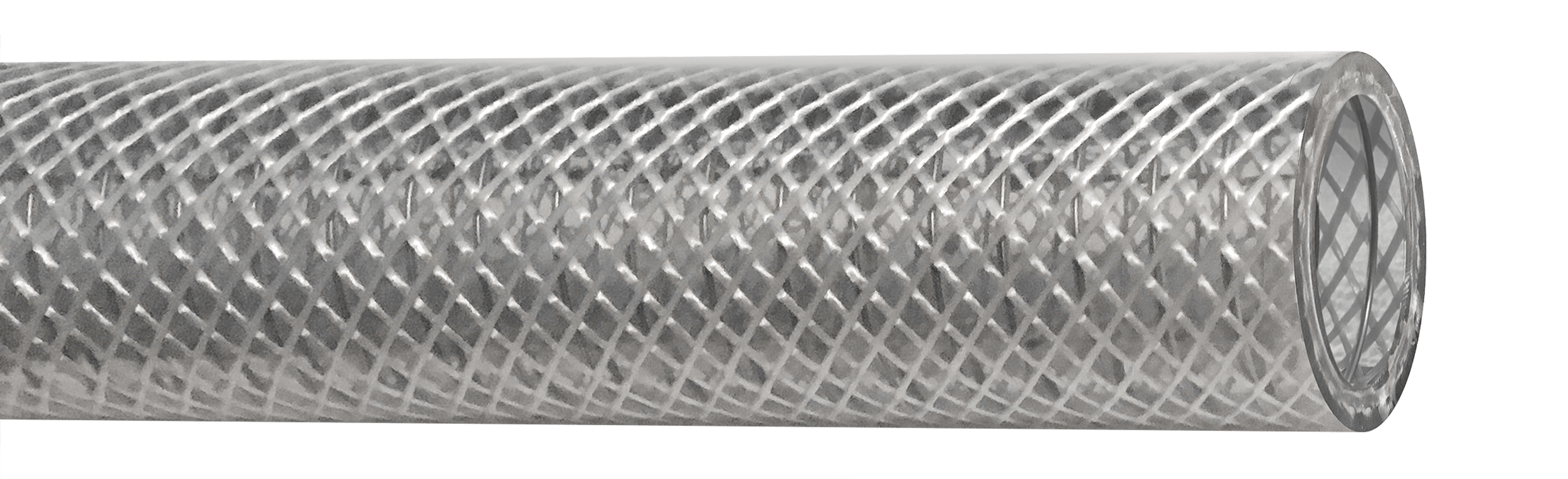

Polyester Braid and Steel Wire Reinforced PVC Tubing

This hose delivers the best of both worlds—combining the flexibility and clarity of braided tubing with the added strength and stability of steel wire reinforcement. Manufactured for durability in demanding applications, it offers excellent pressure resistance, crush protection, and ease of handling. The result is a heavy-duty, clear hose ideal for both suction and discharge where strength and visibility are critical.

Constructed with multiple layers of polyester braids and a steel wire helix rod, this hose integrates the key features of our PBT and PWT lines for enhanced performance and versatility.

Key Features

Key Features
    • Tube: FDA PVC
    • Reinforcement: Combines polyester braids with steel wire of the PBT & PWT hoses to provide the benefits of both
    • Cover: Transparent
    • Temperature Range: 15° to 150° F
    • Compliance: 3-A 20-21, FDA 21CFR 170.199, USP Class VI, and NSF
Industry and Application
  • Great Food Grade Transfer Hose
  • Pump Suction & Discharge
  • Receiving Bay
  • Metal Detection System
  • High-Traffic
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
PBW1001"1.45"225 PSI3.5".53 lbs29"
PBW1501.5"2.03"175 PSI5.5".80 lbs29"
PBW2002.0"2.60"150 PSI7.0".1.28 lbs29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature).  Working pressure and vacuum ratings will decrease as temperatures increase.  For “P” Series applications that exceed 100° F, contact the manufacturer for suggestions.
