PBT

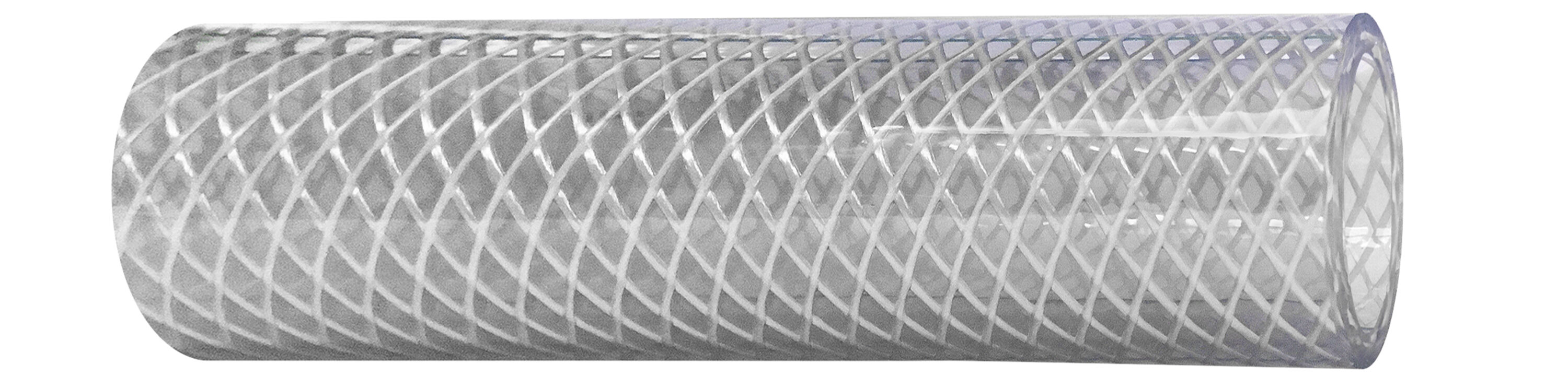

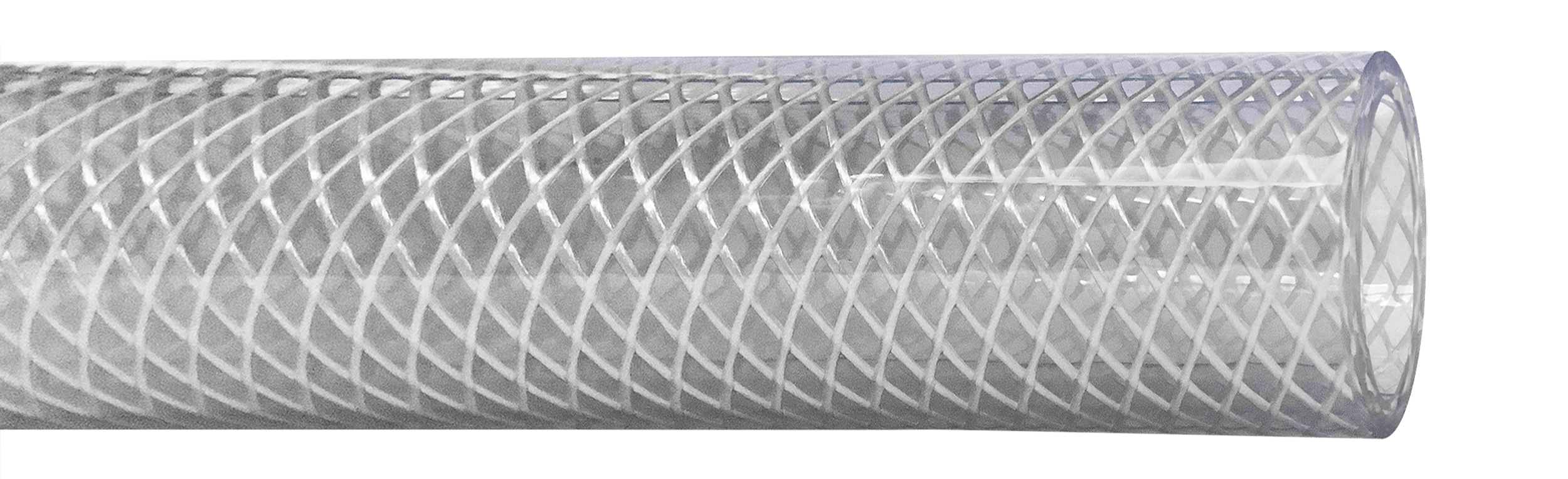

Polyester Braid Reinforced PVC Tubing

PBT tubing combines transparency and flexibility with enhanced strength and durability, thanks to multiple layers of braided polyester reinforcement. This construction ensures reliable performance across a wide range of applications while maintaining ease of use. It meets important industry standards, including 3-A sanitary standards, USDA requirements, and FDA compliance, making it suitable for demanding sanitary environments.

The tubing is made from high-quality materials designed for long-lasting reinforcement and consistent reliability.

This makes PBT tubing especially suitable for:

  • Food-grade fluid transfers
  • Pump suction and discharge operations
  • Use in receiving bays
  • Integration with metal detection systems
  • Environments with high foot or equipment traffic

Key Features

Key Features
  • Tube: FDA PVC
  • Reinforcement: Polyester Textile Inner Braid
  • Cover: Transparent
  • Temperature Range: 25° to 150° F
  • Compliance: 3-A 20-21, FDA 21CFR 170.199, USP Class VI, and NSF
  • Meets USP Guidelines for Class VI Plastics
Industry and Application
  • Great Food Grade Transfer Hose
  • Pump Suction & Discharge
  • Receiving Bay
  • Metal Detection System
  • High-Traffic
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
PBT0500.5"*.81"200 PSINot Applicable.13 lbsNot Applicable
PBT0750.75"1.12"150 PSINot Applicable.22 lbsNot Applicable
PBT1001.0"1.30"125 PSINot Applicable.30 lbsNot Applicable
PBT1501.5"1.94"100 PSINot Applicable.64 lbsNot Applicable
PBT2002.0"2.49"75 PSINot Applicable.94 lbsNot Applicable

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70 ° F (ambient temperature).  Working pressure and vacuum ratings will decrease as temperatures increase.  For “P” Series applications that exceed 100° F, contact the manufacturer for suggestions.
