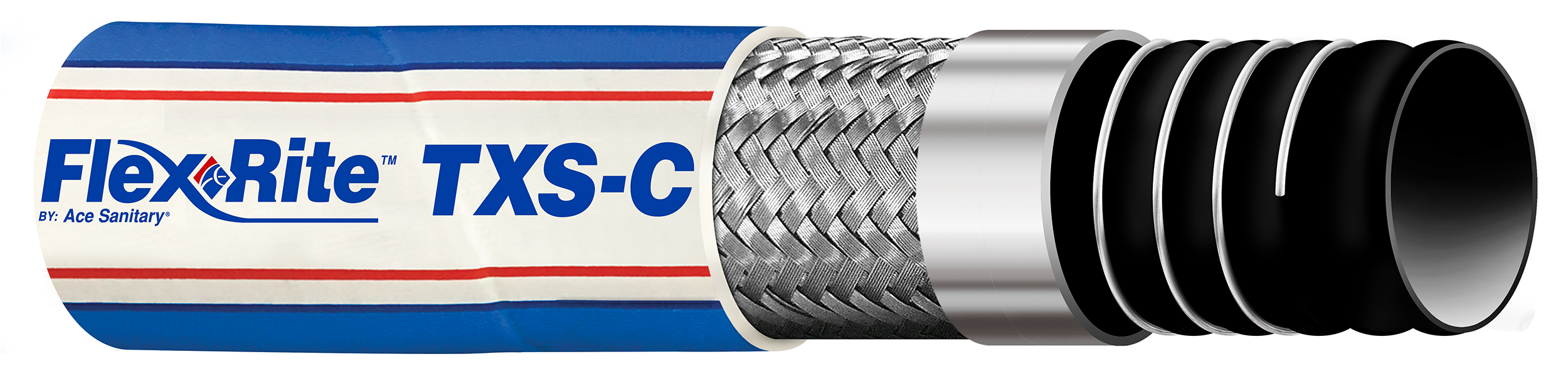

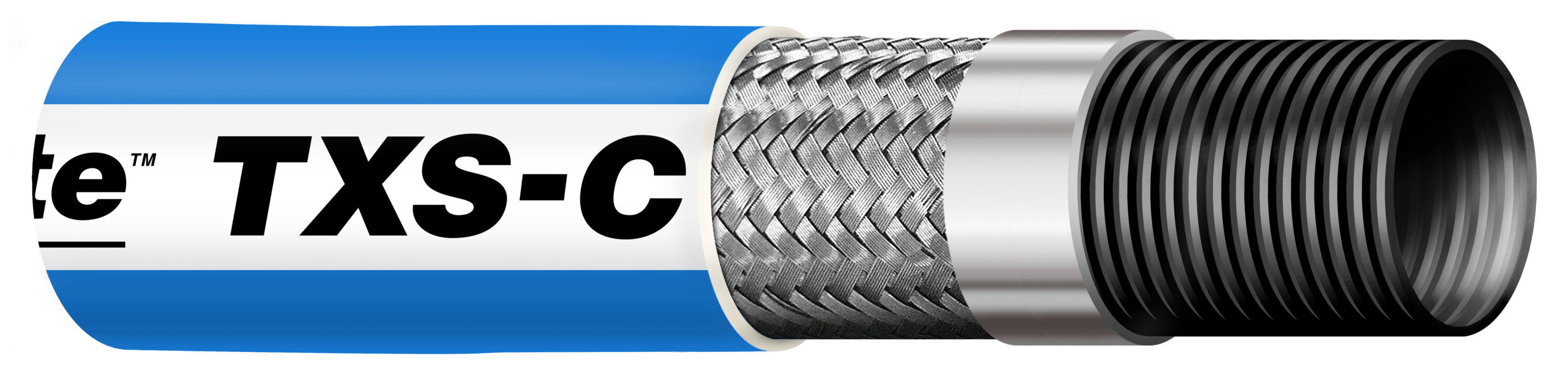

TXS-C

EPDM Cover with Smooth Bore PTFE Tube - Carbon Filled

TXS-C offers the same flexibility, hygienic performance, and durability in critical applications as TXS, but has a carbon filled tube for safety purposes. It excels where product viscosity, flow rate, contamination risk, turbulence, and cleanability are key concerns. Ideal for ultra-sanitary environments in the food, biotech, pharmaceutical, and cosmetic industries, TXS-C is the go-to choice when a non-convoluted, high-flex hose is essential for dynamic use and clean-in-place (CIP) or steam-in-place (SIP) processes.

This hose features an exterior convoluted design with stainless steel braid reinforcement and paired with an EPDM cover.

Key Features

Product Datasheet

Key Features

Extreme Flexibility
Easy Cleaning
Imparts No Odor or Taste
NO Static Build-Up (with Antistatic liner)
Available with Flared Through Liner

Industry and Application

Volatile Media Transfer
Food & Beverage
Biotech Industry
Pharmaceutical/ Biopharm
Hot Oil Transfer
Low Velocity Transfer

Available Sizes

SIZE INCHES	SIZE MM	O.D. INCHES	O.D. MM	MBR INCHES	MBR MM	WP PSI	WP BAR	WEIGHT GR/M	WEIGHT LBS/FT	TXS NATURAL
1/2"	13.2	1.01	25.75	2.4"	60	580	40	400	0.27	TXS050
3/4"	20.2	1.29	32.9	3.2"	80	580	40	900	0.60	TXS075
1"	25.4	1.51	38.5	4.7"	120	580	40	1000	0.67	TXS100
1 1/2"	38.2	2.10	53.5	7.9"	200	365	25	1750	1.18	TXS150
2"	50.2	2.61	66.5	9.8"	250	365	25	2650	1.78	TXS200

Additional Information

TUBE: PTFE (Natural or Antistatic) with Carbon Rich Inner, 3-A*, USP Class VI & FDA Criteria
REINFORCEMENT: Stainless Steel Helix
RECOMMENDED CLEANING: CIP, SIP, Autoclave
MAXIMUM LENGTHS: 32′
COVER: EDPM Cover
TEMP. RANGE: -40 to 302° F , -40 to 150° C Vulcanized
COVER OPTIONS: Standard EDPM, SS Braid

All “T-Series” hoses meet USP Class VI & FDA Criteria – ALL liners are extra thick to provide better flex life and less permeation. Anti-static tube option available.

TXS/TXS-C has a PTFE liner, manufactured from PTFE material in accordance with FDA requirement 21 CFR 177.1550 and is also manufactured solely from materials that meet the requirements of the 3-A Sanitary Standards. Although the tube’s interior surface meets the 3-A definition of (substantially flush) a micro ripple occurs during the compression molding process.

TXS/TXS-C has been tested and the PTFE liners comply with USP Class VI, including the Elution (Cytotoxicity) test.

WARNING Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” series applications that exceed 250° F contact the manufacturer for suggestions.
