TSP-C

Silicone Cover with CO-X PTFE Tube - Carbon Filled

TSP-C offers the same flexible, easy-to-clean suction and discharge hose as the TSP, manufactured for sanitary and high-purity applications in the food, cosmetic, chemical, and pharmaceutical industries. Its smooth outer silicone cover resists buildup and allows for quick washdown, while the non-pigmented, natural PTFE liner ensures product purity and chemical compatibility. Phthalate-free and fully batch traceable, TSP-C is ideal for environments where cleanliness, safety, and compliance are essential.

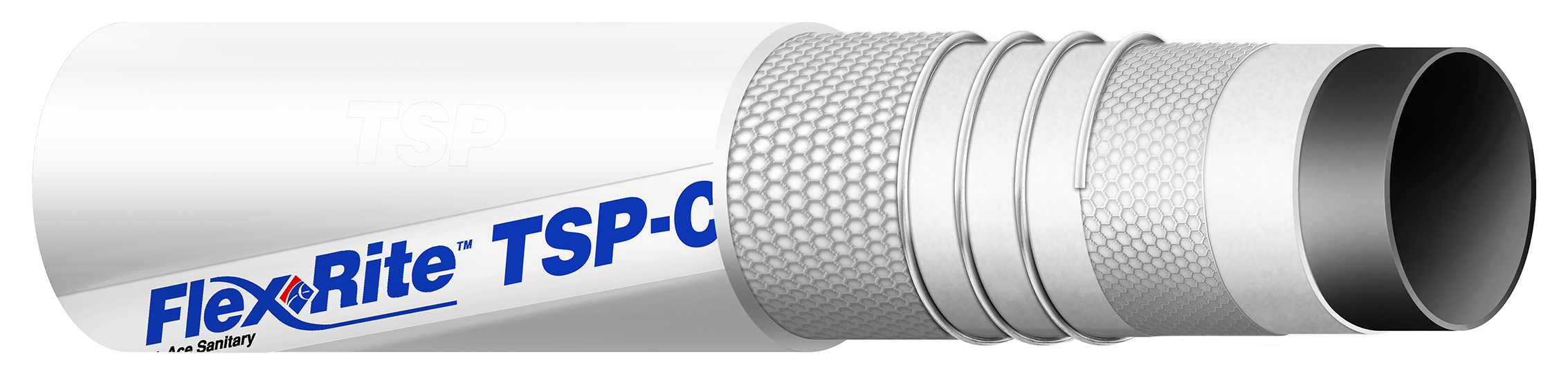

This hose features a co-extruded PTFE liner, Carbon filled tube for safety purposes, with no adhesives and a smooth silicone cover, manufactured from high-quality elastomers that deliver excellent chemical resistance and mechanical strength.

Key Features

Key Features
  • NO Adhesives used in construction
  • Phthalate Free
  • Resistant to high temperature
  • Chemical Resistant
  • Rated for High/Low Temps
  • Non-Discoloring
  • Insensitive to Ultraviolet or sunlight
  • Mechanical Stress Resistant
  • Excellent Endurance
Industry and Application
  • BioPharma
  • Pharma
  • Chemical
  • Food
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HGLENGTH
TSP0500.5"0.94"200 PSI2.0"0.31 lbs.28"32'
TSP0750.75"1.18"180 PSI3.0"0.41 lbs.28"32'
TSP1001.0"1.42"180 PSI3.5"0.51 lbs.28"32'
TSP1501.5"1.97"150 PSI5.5"0.84 lbs.28"32'
TSP2002.0"2.44"105 PSI7.0"1.07 lbs.28"32'
TSP2502.5"3.13"90 PSI12.5"1.80 lbs.28"32'
TSP3003.0"3.58"75 PSI15.0"2.17 lbs.28"32'
TSP4004.0"4.61"60 PSI23.0"3.4 lbs.28"20'

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

1.25″ I.D. and 4″ I.D. Models Are Available Upon Request – Consult Factory

T-Series Products meet/comply: USP Class VI, FDA CFR Title 21 177.1550, 3-A 20-23

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” series applications that exceed 250° F, contact the manufacturer for suggestions.
