TSC-C

Silicone Cover with Smooth Bore PTFE Tube- Carbon Filled

TSC-C offers the same flexibility, cleanability, and safety in high-purity applications as TSC, but has a carbon filled tube for safety purposes. Ideal for the pharmaceutical, biotech, and food industries, they provide taste- and odor-free product transfer and are easy to clean both inside and out. The hose is especially well-suited for steam or volatile media transfer, where static build-up could pose a risk, and offers added safety in high-temperature environments such as hot oil or steam applications, helping to reduce the risk of accidental burns.

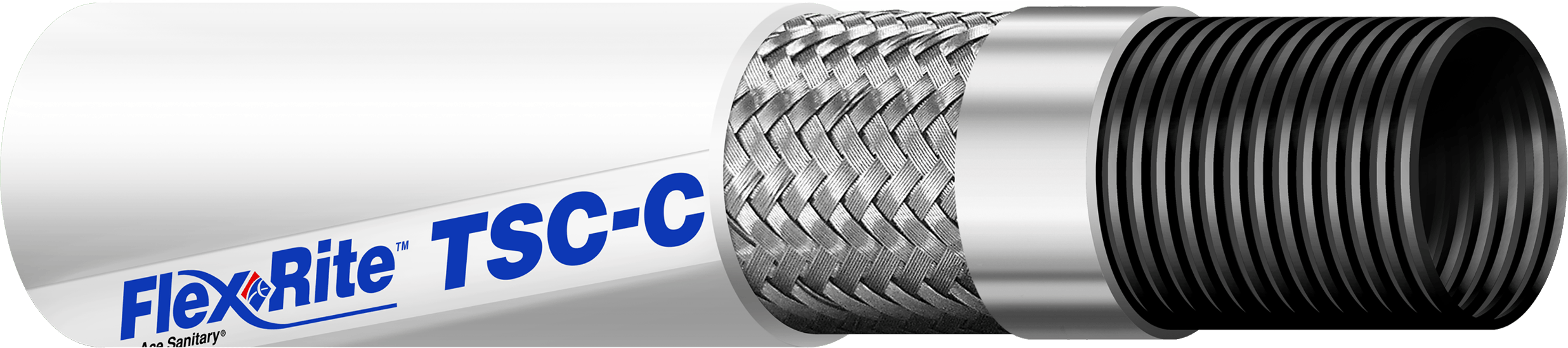

This hose features a smoothbore PTFE liner for chemical resistance and product purity, reinforced and covered with a durable silicone jacket for external protection and thermal insulation.

Key Features

Key Features
  • Extreme Flexibility
  • Easy Cleaning, Inside & Out
  • Imparts No Odor or Taste
  • NO Static Build-Up (TSC-C)
  • Lighter than Similar Products
Industry and Application
  • Volatile Media Transfer
  • Food & Beverage
  • Biotech Industry
  • Pharmaceutical Process
  • Pharmaceutical Utilities
  • Hot Oil Transfer
  • Low Velocity Transfer
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TSC025.25".46"1100 PSI.07".12 lbs29"
TSC037.375".61"1000 PSI1.0".14 lbs29"
TSC0500.5".77"870 PSI1.5".25 lbs29"
TSC0750.75"1.07"650 PSI2.5".42 lbs29"
TSC1001.0"1.37"580 PSI4.0".57 lbs29"
TSC1501.5"2.03"430 PSI6.7"1.14 lbs29"
TSC2002.0"2.56"400 PSI8.2"1.58 lbs29"
TSC2502.5"3.17"290 PSI11.8"2.41 lbs29"
TSC3003.0"3.65"220 PSI13.8"2.96 lbs29"

* The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F, contact the manufacturer for suggestions.
