TSC

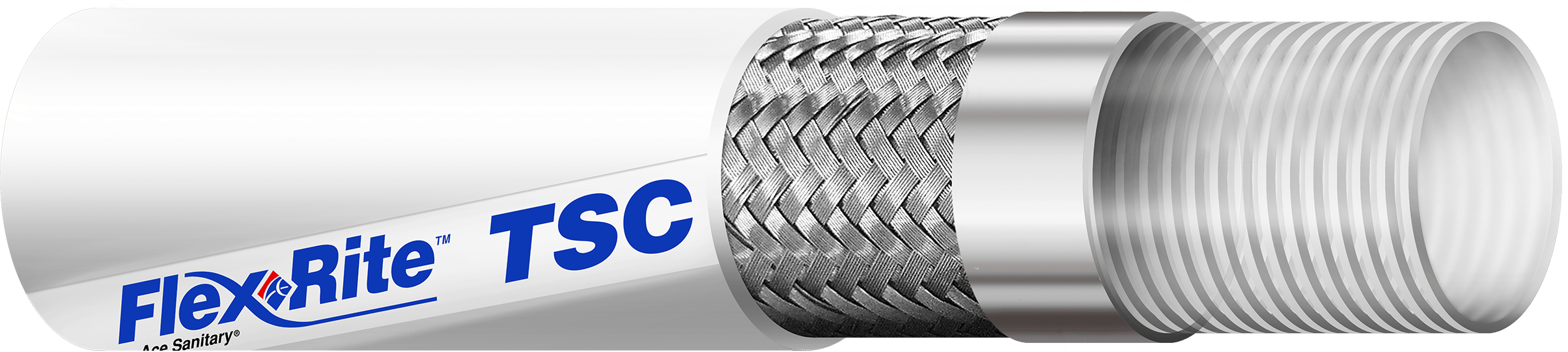

Silicone Cover with Smooth Bore PTFE Tube

Ace Sanitary’s TSC hose is made for maximum flexibility, safety, and cleanliness in high-purity environments. It ensures taste- and odor-free product transfer, making it ideal for pharmaceutical, biotech, and food applications. The smooth inner bore allows for easy cleaning, while the silicone cover provides added protection—especially useful in applications involving hot fluids or steam, helping to reduce the risk of accidental burns.

This hose features a smoothbore PTFE liner with a durable, cleanable silicone cover, delivering outstanding performance in both sanitary and high-temperature transfer applications.

Key Features

Key Features
  • Extreme Flexibility
  • Easy Cleaning, Inside & Out
  • Imparts No Odor or Taste
  • NO Static Build-Up (TSC-C)
  • Lighter than Similar Products
Industry and Application
  • Volatile Media Transfer
  • Food & Beverage
  • Biotech Industry
  • Pharmaceutical Utilities
  • Hot Oil Transfer
  • Low Velocity Transfer
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TSC025.25".46"1100 PSI.07".12 lbs29"
TSC037.375".61"1000 PSI1.0".14 lbs29"
TSC0500.5".77"870 PSI1.5".25 lbs29"
TSC0750.75"1.07"650 PSI2.5".42 lbs29"
TSC1001.0"1.37"580 PSI4.0".57 lbs29"
TSC1501.5"2.03"430 PSI6.7"1.14 lbs29"
TSC2002.0"2.56"400 PSI8.2"1.58 lbs29"
TSC2502.5"3.17"290 PSI11.8"2.41 lbs29"
TSC3003.0"3.65"220 PSI13.8"2.96 lbs29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F contact the manufacturer for suggestions.
