TSB

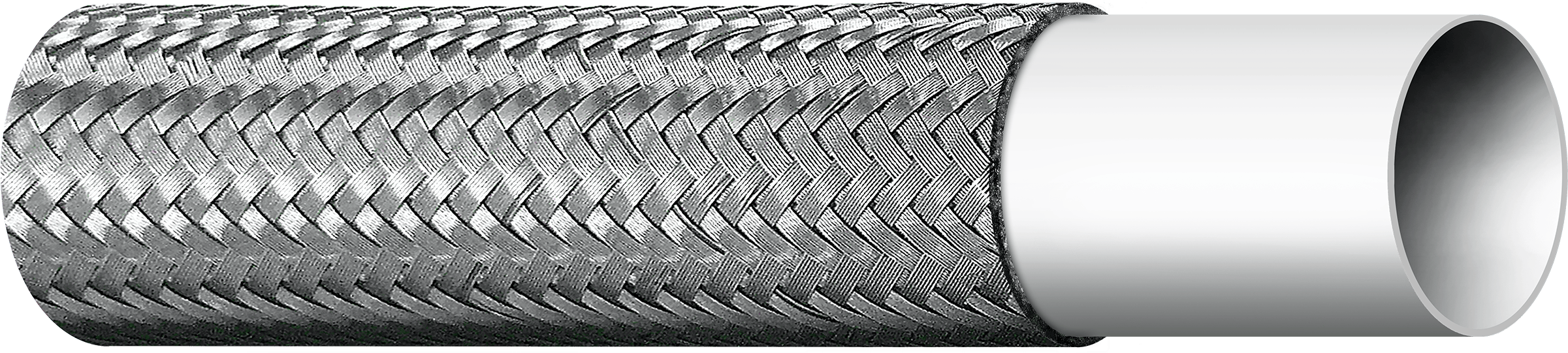

Stainless Steel Braided Cover with Smooth Bore PTFE Tube

Ideal for stationary applications with minimal flexing or handling, these hoses offer exceptional chemical resistance, making them well-suited for pharmaceutical and food and beverage processing. The smooth-bore liner ensures clean, efficient flow, while compatibility with “flared through” fittings allows for secure, sanitary connections. These hoses provide reliable performance in environments where purity, durability, and chemical compatibility are critical.

Constructed with a smooth-bore PTFE lining and reinforced with a braided exterior, they are engineered to handle a wide range of sanitary applications with confidence.

Key Features

Key Features
  • Higher Working Temperatures
  • Full Vacuum Capabilities
  • Autoclavable
  • Smooth Bore
  • Chemical Resistant
Industry and Application
  • Product Transfer
  • Load Cells
  • Gas Transfer
  • Compressed Air
  • Concentrated CIP Chemicals
  • Food, Flavor, and Fragrances
  • Drain and Sample
  • Corrosive Environments
  • Vibration Isolation
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TSB0250.25".41"3000 PSI1.7".16 lbs30"
TSB0370.37".53"2500 PSI2.0".16 lbs30"
TSB0500.50".63"1425 PSI6.5".16 lbs30"
TSB0620.62''.74''1400 PSI8.0''.17 lbs30"
TSB0750.75".86"1000 PSI8.2".20 lbs30"
TSB1001.0"1.19"1000 PSI12.0".53 lbs30"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F, contact the manufacturer for suggestions.
