TRP

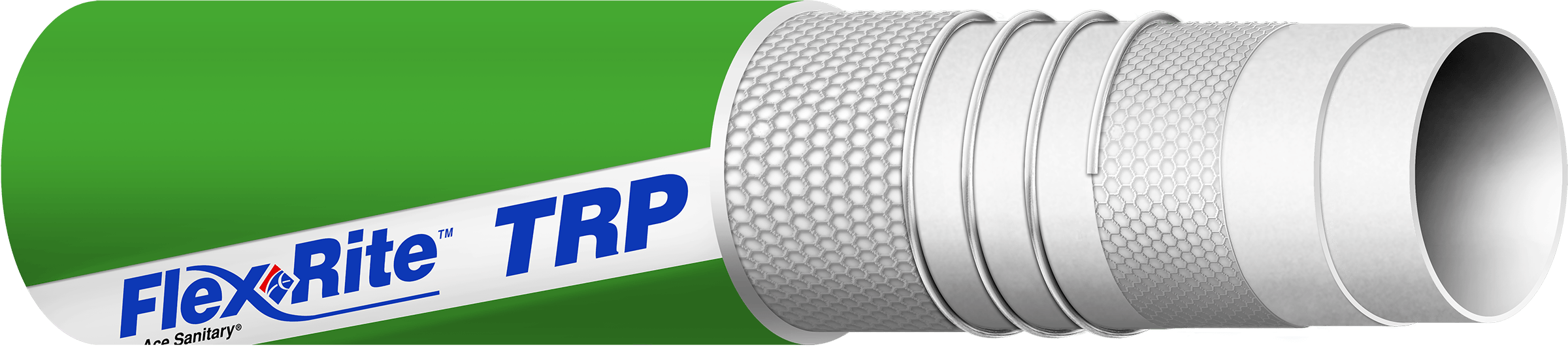

EPDM Cover with Smooth Bore PTFE Tube

TRP is engineered for durability and reliability in tough environments where external abrasion, crushing, or kinking are concerns. Its design offers strong vacuum resistance and structural integrity, making it ideal for demanding applications that require rugged handling and dependable performance.

This hose features a smooth bore with a helically wound stainless steel wire embedded throughout and FDA grade backing materials, combined with a durable EPDM rubber cover to ensure excellent abrasion resistance and flexibility.

Key Features

Key Features
  • Extended Service Life
  • Smooth, Flexible Fluoropolymer Liner
  • Superb flexibility
  • Strong, Kink Resistant
  • Chemical Resistant EPDM Cover
Industry and Application
  • Transport
    • Pharmaceuticals
    • Chemicals
    • Food
    • Beverages
    • Receiving Bay
  • Cleaning/Sterilizing
Available Sizes
MODELI.D.O.D.WORKING PRESSUREBEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TRP0500.5"1"250 PSI3".34 lbs28"
TRP0750.75"1.22"250 PSI4.33".44 lbs28"
TRP1001.0"1.46"250 PSI5.91".54 lbs28"
TRP1501.5"2"250 PSI9.45".9 lbs28"
TRP2002.0"2.6"250 PSI12.6"1.38 lbs28"
TRP2502.5"3.13"250 PSI16.9"1.74 lbs28"
TRP3003.0"3.58"250 PSI20.08"2.30 lbs28"
TRP4004.0"4.57''250 PSI25.59''2.82 lbs28"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

About Our TRP

A steel wire is helically wound through the tube, which provides crush, and vacuum resistance. Ideal where external abrasion resistance is required and for transport, pharmaceutical, chemical, food & beverage, receiving bay, and cleaning and sterilizing.

  • Steel wire, helically wound through the tube
  • Provides crush, kink, and vacuum resistance
  • Ideal where external abrasion resistance is required

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F contact the manufacturer for suggestions.
