TCP

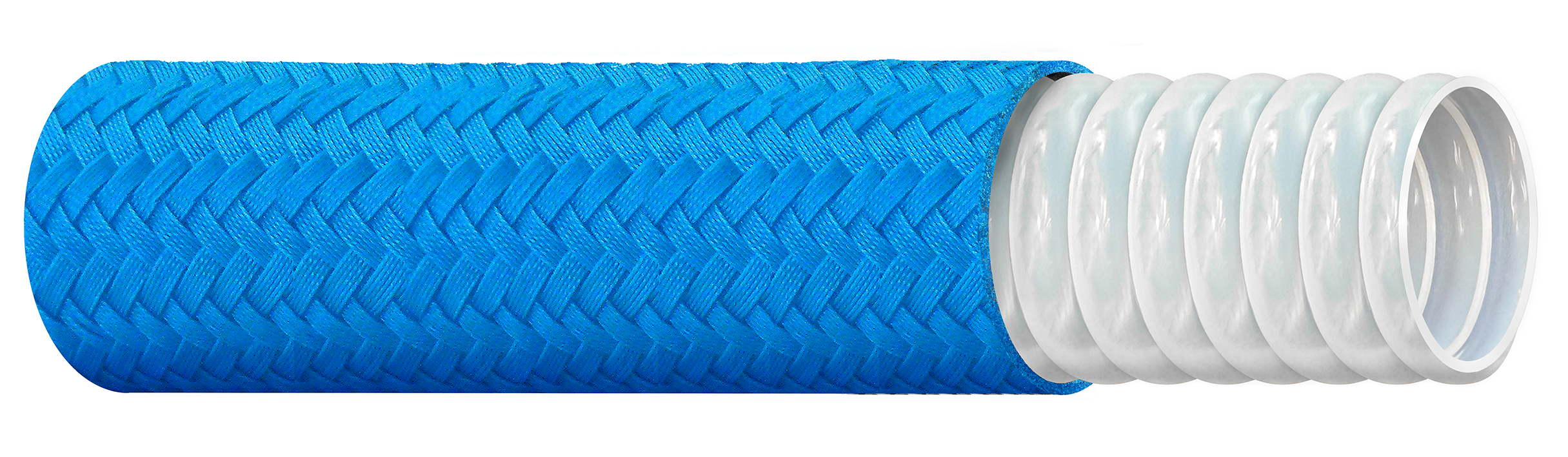

Poly Braided Cover with Convoluted PTFE Tube

Ace Sanitary’s TCP hoses deliver superior flexibility, tighter bend radii, and better abrasion resistance than traditional metal-braided hoses. They are crush-resistant and designed for easy handling and long-lasting durability in demanding environments. The open-pitched, seamless helical convolutions ensure easy cleaning and efficient transfer of pharmaceuticals, chemicals, food, and beverages—making them ideal for sanitary and industrial applications.

These hoses feature a poly braid reinforcement over a convoluted PTFE core, combining durability and cleanability in one high-performance solution.

Key Features

Key Features
  • Tube: PTFE unpigmented, USP Class VI & FDA Criteria
  • Recommended Cleaning: CIP, SIP*
  • Cover: Blue polypropylene
  • Temperature Range: -20° to 250° F
Industry and Application
  • Great Food Grade Transfer Hose
  • Pump Suction & Discharge
  • Receiving Bay
  • Metal Detection System
  • High Traffic
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TCP0500.5".86"475 PSI2.0".12 lbs"29"
TCP0750.75"1.16"425 PSI2.7".18 lbs29"
TCP1001.0"1.44"375 PSI4.0".26 lbs"29"
TCP1501.5"2.16"325 PSI6.0".47 lbs29"
TCP2002.0"2.56"275 PSI7.5".54 lbs29"
TCP3003.0"3.92"225 PSI14.0"1.03 lbs29"
TCP4004.0"5.22"100 PSI16.0"1.72 lbs29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F contact the manufacturer for suggestions.
