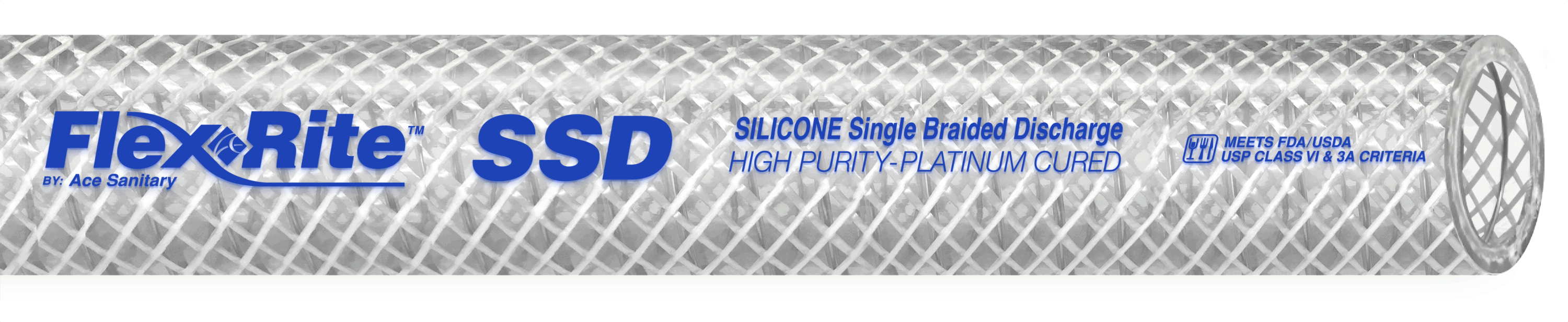

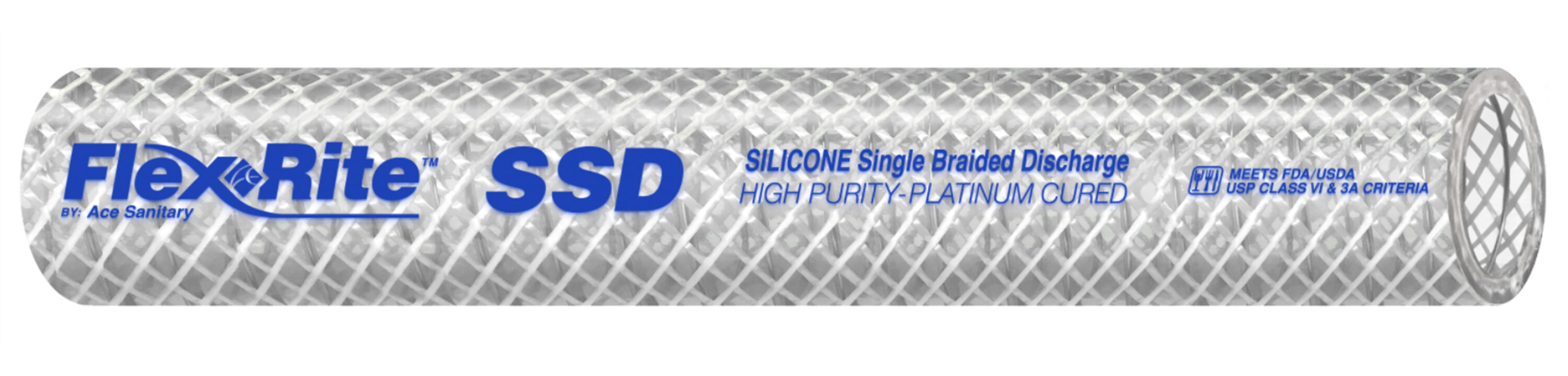

SU/SSD

Single Braid Reinforced Silicone Tubing

SU/SSD is built for high-pressure, critical transfer applications in the biotech, pharmaceutical, cosmetic, and food industries. It offers exceptional durability, withstands repeated sterilization, and resists weathering and extreme temperatures—making it a reliable solution for demanding environments. Each hose is fully lot traceable and produced under strict quality standards, with extensive physical, chemical, and biological testing to ensure performance and compliance.

This hose is made from platinum-cured, braid-reinforced high-purity silicone and manufactured in an ISO Class 7 cleanroom to maintain the highest levels of cleanliness and consistency.

Key Features

Key Features
  • Ultra Flexible
  • Light Weight
  • Sterilizable
  • Autoclavable
  • Rated for Higher Pressure
  • Platinum Cured
  • Braid Reinforced
  • Lot Number Traceability
  • High Temperature Rated
Industry and Application
  • BioPharma/Pharma
  • Cell Cultures
  • Load Cell
  • Vessel or Tank Transfer
Available Sizes
ModelI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT/FT.VACUUM INCH HGLENGTH
SU/SSD025.25".52"140 PSI1.0"0.09lbsNot Applicable50'
SU/SSD037 .37".66"135 PSI1.5"0.13lbsNot Applicable50'
SU/SSD050 .5".80" 100 PSI3.0"0.18lbsNot Applicable50'
SU/SSD062 .62".97" 100 PSI3.5"0.22lbsNot Applicable50'
SU/SSD075 .75"1.10" 90 PSI4.0"0.26lbsNot Applicable50'
SU/SSD100 1.0"1.36" 60 PSI6.0"0.31lbsNot Applicable50'

*The 3-A 62-02 standard applies only to assemblies of .75” inner diameter and larger.

Your SSD Tubing Supplier

Ace Sanitary offers braid reinforced silicone hoses, processed with pharmaceutical-grade elastomer, designed for mid-range pressures. Manufactured with standard polyester braid, this hose meets 3A, USDA, and FDA compliance standards. It offers excellent resistance to weathering and extreme temperatures.

  • Reinforced silicone hose, processed with pharmaceutical-grade elastomer, designed for mid-range pressures.
  • Manufactured using standard polyester.
  • Compliant USP Class VI, FDA, 3A, and USDA standards.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “S” Series applications that exceed 250° F contact manufacturer for suggestions.

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
