Standard Wall PTFE

304 Stainless Steel Braid with PTFE Tube

The TSB-L hose is manufactured for clean, safe, and reliable fluid transfer. Its non-stick, non-absorbent interior prevents taste or odor transfer, making it ideal for applications requiring product purity. With excellent chemical resistance, it supports the safe handling of a wide variety of fluids across multiple industries.

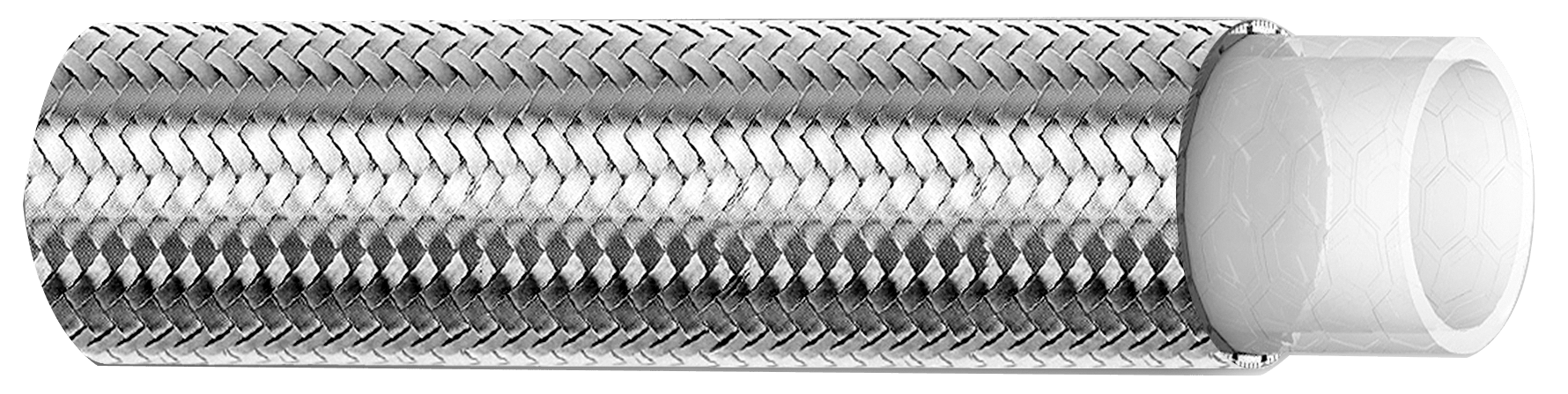

Constructed with a smooth PTFE liner and reinforced with a 304 stainless steel braid, this hose combines durability, flexibility, and high-performance fluid compatibility.

Key Features

Key Features
  • Tube: PTFE Liner
  • 304 Braided Stainless Steel
  • -100°F 450°F
  • USP Class VI
  • FDA 21 CFR177.1550
  • USDA
Industry and Application
  • Load Cell
  • Bulk Transfer
  • CIP/SIP
  • Filling Equipment
  • Steam Transfer
  • Process Lines
  • Acid Transfer
  • Solvent Transfer
Available Sizes
NAMEWORKING PRESSUREBURST PRESSUREHOSE I.D. (INCHES)HOSE O.D. (INCHES)BEND RADIUS (INCHES)WEIGTH (LBS)
TSB-L0183,000 PSI12,000 PSI0.1875 IN0.300 IN2.0 IN0.077 LBS/FT
TSB-L0253,000 PSI12,000 PSI0.250 IN0.375 IN3.0 IN0.098 LBS/FT
TSB-L0312,540 PSI10,160 PSI0.3125 IN0.430 IN4.0 IN0.110 LBS/FT
TSB-L0372,500 PSI10,000 PSI0.375 IN0.480 IN5.0 IN0.124 LBS/FT
TSB-L0402,250 PSI9,000 PSI0.405 IN0.540 IN5.4 IN0.134 LBS/FT
TSB-L0502,000 PSI8,00 PSI0.500 IN0.640 IN6.6 IN0.154 LBS/FT
TSB-L0621,500 PSI6,000 PSI0.625 IN0.740 IN8.0 IN0.170 LBS/FT
TSB-L0751,100 PSI4,400 PSI0.750 IN0.910 IN9.2 IN0.198 LBS/FT

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
