Smooth Bore PTFE Hytrel

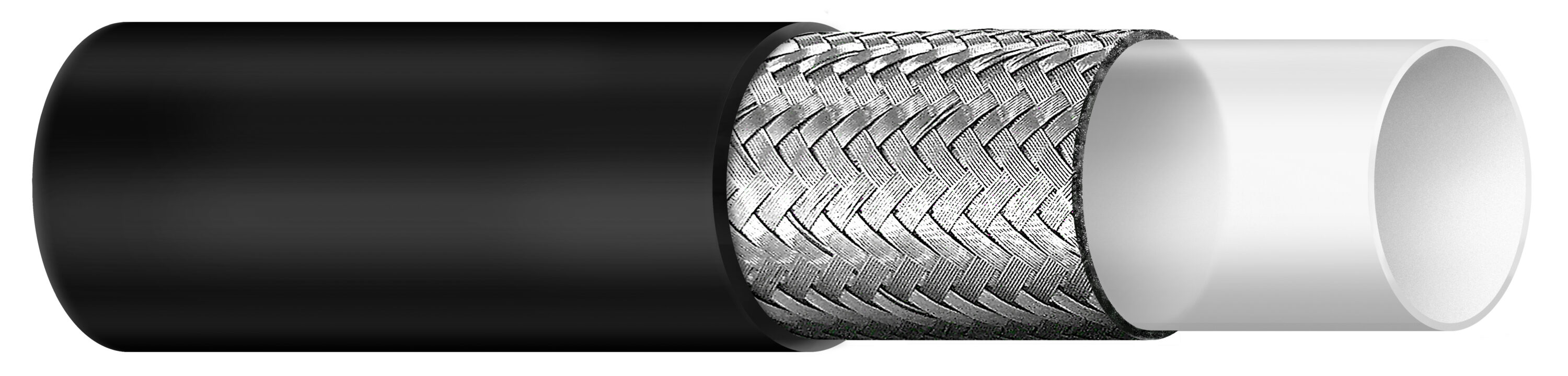

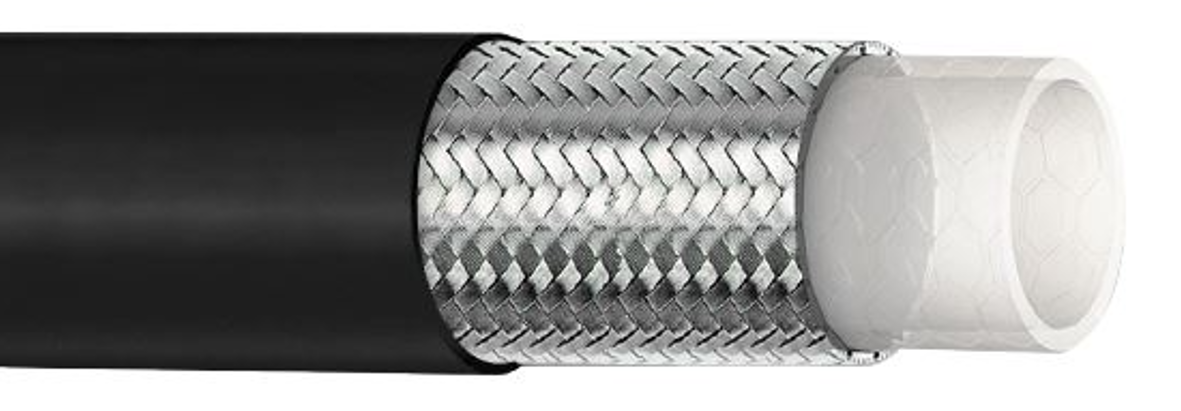

Hytrel Cover, Stainless Steel Braid with PTFE Tube

The TSB-HY (a.k.a. H-FLEX) hose offers a non-stick, non-absorbent interior that won’t retain or transfer taste or odor—ensuring product purity with every transfer. Its exceptional chemical resistance makes it ideal for safely transporting a wide range of fluids across various industries. Built for reliability, it’s well-suited for applications requiring cleanliness, compatibility, and durability.

Constructed with a smooth PTFE liner and reinforced with a 304 stainless steel braid, this hose delivers long-lasting performance in demanding environments.

Key Features

Key Features
  • Tube: PTFE Liner
  • 304 Stainless Steel
  • -100°F 300°F
  • FDA 21 CFR177.1550
  • USDA
Available Sizes
NAMEWORKING PRESSUREBURST PRESSUREHOSE I.D. (INCHES)HOSE O.D. (INCHES)BEND RADIUS (INCHES)WEIGTH (LBS)
TSB-HY0123,000 PSI12,000 PSI0.125 IN0.324 IN2.00 IN0.07 LBS/FT
TSB-HY0253,000 PSI12,000 PSI0.250 IN0.375 IN3.00 IN0.12 LBS/FT
TSB-HY0372,250 PSI9,000 PSI0.375 IN0.526 IN4.50 IN0.15 LBS/FT
TSB-HY0501,500 PSI6,000 PSI0.500 IN0.693 IN6.50 IN0.18 LBS/FT

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
