Heavy Wall Smooth Bore

Stainless Steel Braid with PTFE Tube

TSB-H & HC are engineered for superior durability, flexibility, and performance in demanding applications. Its heavy-wall PTFE core minimizes gas permeation, extending hose life and ensuring safer operation. With a 4:1 safety factor and a wide operating temperature range of -100°F to 450°F, it offers dependable performance in extreme conditions. The ¾” and 1” sizes feature a double-braided design, providing enhanced flexibility compared to most standard smoothbore PTFE hoses.

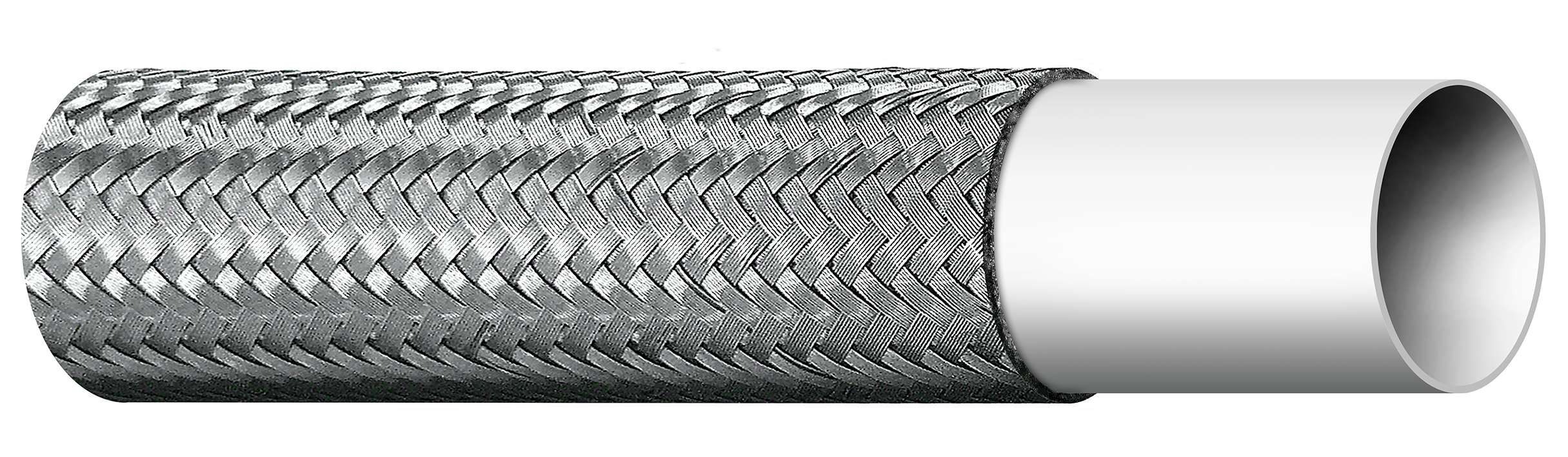

This hose features a smooth PTFE core reinforced with a stainless-steel wire braid, making it ideal for high-pressure and high-temperature fluid or gas transfer applications.

Key Features

Key Features
  • Higher Working Temperatures
  • Full Vacuum Capabilities
  • Autoclavable
  • Smooth Bore
  • Chemical Resistant
Industry and Application
  • Product Transfer
  • Load Cells
  • Gas Transfer
  • Compressed Air
  • Concentrated CIP Chemicals
  • Food, Flavor, and Fragrances
  • Drain and Sample
  • Corrosive Environments
  • Vibration Isolation
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TSB-H012/B-FLEX-020.125".25"3500 PSI1.5".05 lbs30"
TSB-H025/B-FLEX-040.25".41"3200 PSI1.5".10 lbs30"
TSB-H037/B-FLEX-060.37".53"2500 PSI2.0".12 lbs30"
TSB-H050/B-FLEX-080.50".67"2000 PSI3.0".16 lbs30"
TSB-H075/B-FLEX-120.75".87"1000 PSI8.2".20 lbs30"
TSB-H100/B-FLEX-161.0"1.19"1000 PSI12.0".53 lbs30"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F, contact the manufacturer for suggestions.
