Convoluted Bore

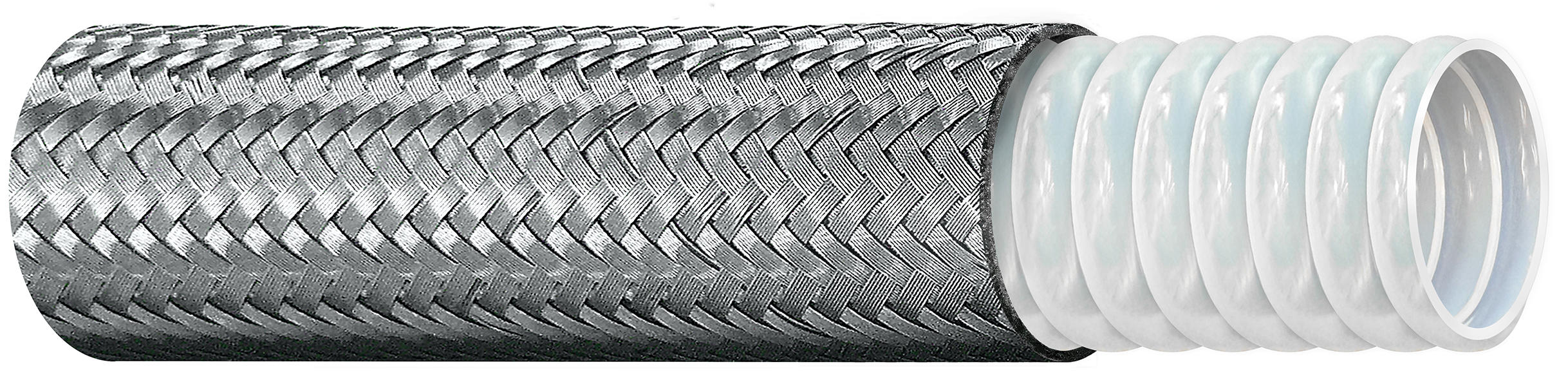

Stainless Steel Braid with Convoluted PTFE Tube

The TCB is manufactured for durability and flexibility, this hose offers superior crush resistance and a tighter bend radius compared to smooth bore options—making it easier to handle in tight spaces. Its open-pitched, seamless helical convolutions allow for quick cleaning and efficient flow, making it ideal for transferring pharmaceuticals, chemicals, food, and beverages.

The hose is constructed with a convoluted design specifically engineered for sanitary and industrial applications where flexibility, cleanability, and performance are essential.

Key Features

Key Features
  • Tube: PTFE unpigmented, USP Class VI & FDA Criteria
  • Recommended Cleaning: CIP, SIP, Autoclave
  • Cover:316 Stainless Steel Braid
  • Temperature Range: -20° to 425° F
Industry and Application
  • Receiving Bay
  • Cleanup
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG*
TCB0500.5".75"1425 PSI2.0".19 lbs"25"
TCB0750.75"1.05"1300 PSI2.7".29 lbs25"
TCB1001.0"1.35"1100 PSI4.0".51 lbs"25"
TCB1501.5"2.03"700 PSI6.0".81 lbs25"
TCB2002.0"2.46"525 PSI7.5"1.0 lbs25"
TCB3003.0"3.70"350 PSI14.0"1.58 lbs26"
TCB4004.0"5.0"275 PSI16.0"2.51 lbs26"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

*For higher vacuum requirements, please contact the factory.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F contact manufacturer for suggestions.
