Convoluted Bore PTFE Polypropylene

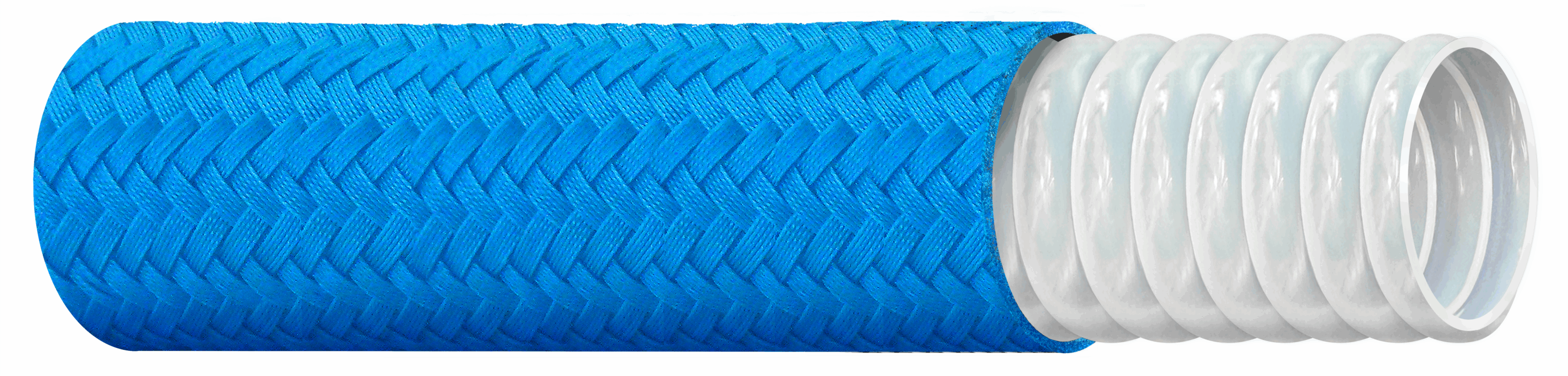

Poly Braided Cover with Convoluted PTFE Tube

The TCP hose delivers superior flexibility, tighter bend radii, and enhanced abrasion resistance—outperforming traditional metal-braided alternatives. Its crush-resistant design and open-pitched, seamless helical convolutions make it easy to clean and ideal for the safe, efficient transfer of pharmaceuticals, chemicals, food, and beverages.

Constructed with a convoluted PTFE bore and reinforced with a durable polypropylene braid, this hose is engineered for long-lasting performance in demanding sanitary and industrial environments.

Key Features

Key Features
  • Tube: PTFE unpigmented, USP Class VI & FDA Criteria
  • Recommended Cleaning: CIP, SIP*
  • Cover: Blue polypropylene
  • Temperature Range: -20° to 250° F
Industry and Application
  • Receiving Bay
  • Cleanup
Available Sizes
MODELI.D.O.D.WORKING PRESSUREMIN. BEND RADIUSWEIGHT PER FT.VACUUM INCH HG
TCP0500.5".86"475 PSI2.0".12 lbs"29"
TCP0750.75"1.16"425 PSI2.7".18 lbs29"
TCP1001.0"1.44"375 PSI4.0".26 lbs"29"
TCP1501.5"2.16"325 PSI6.0".47 lbs29"
TCP2002.0"2.56"275 PSI7.5".54 lbs29"
TCP3003.0"3.92"225 PSI14.0"1.03 lbs29"
TCP4004.0"5.22"100 PSI16.0"1.72 lbs29"

*The 3-A 62-02 standard applies only to assemblies of .75″ inner diameter and larger.

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “T” Series applications that exceed 250° F, contact the manufacturer for suggestions.
