MCB

Flexible Metal Hose

About Our MCB Products

Select our flexible all-metal hose for your applications that require flexible hose assemblies for more extreme temperatures, with similar pressures to our PTFE hose assemblies.

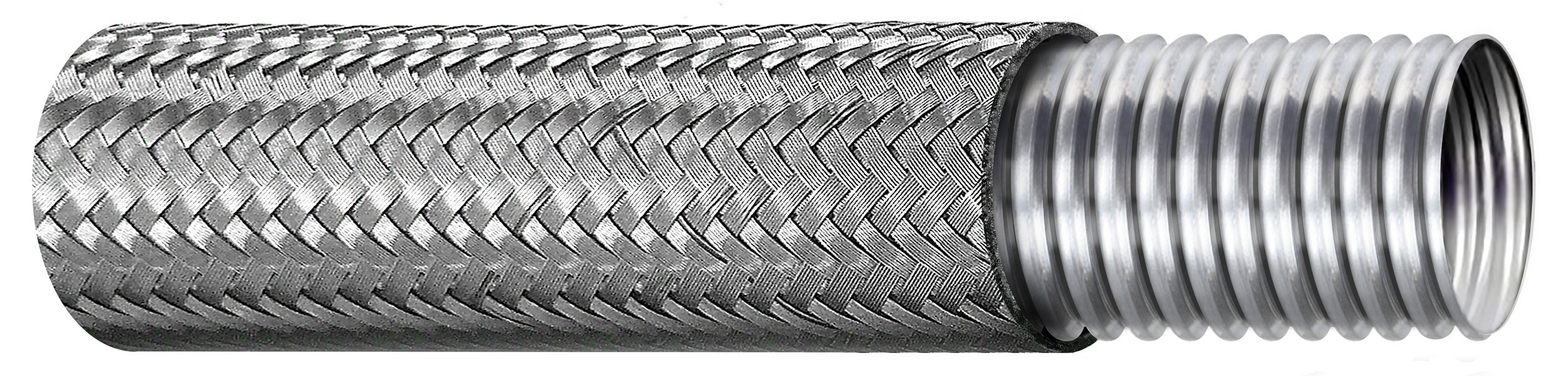

Ranging from 1/4” up to 12” in diameter, the flexible metal hose is constructed with a corrugated stainless steel liner and is sold alone or reinforced with one or more outer covers of braided stainless steel to meet your process application requirements.

Varying metal strengths of the corrugated liner and additional layers of braiding are available for flexible metal hose.  Metal hoses are an ideal option when you need a high-temperature hose or flexible hose. These high-temperature hoses are used in applications, from Cryogenic up to 1300° F, at varying pressures.

Key Features

Key Features
  • All metal hose – corrugated stainless steel core, sold standalone or with braided steel layers
  • Pressure tolerances include full vacuum to those listed in the spec table below
  • Application Temperature ratings from Cryogenic to 1300° F
  • Meets or exceeds ISO 10380 at maximum working pressure
Industry and Application
  • Suction
  • Conveying and transporting chemicals
  • Liquid gas
  • Coolants
  • Steam transfer
  • Oil
  • Pharmaceutical
  • Food and Beverage
Available Sizes
Size-NameBraid LayerPressure Rating at 70°F  Hose I.DHose O.D.Static Bend RadiusDynamic Bend RadiusWeight per Foot
 Working PSITestBurst PSI
1/4″ Flexible Metal Hose0140 PSI210 PSI 0.25 IN 0.46 IN4 IN6 IN0.10 LBS/FT
12373 PSI3564 PSI9500 PSI0.51 IN0.17 LBS/FT
23125 PSI4687 PSI12500 PSI0.56 IN0.28 LBS/FT
3/8″ Flexible Metal Hose0100 PSI150 PSI 0.375 IN0.61 IN2 IN4 IN0.13 LBS/FT
11650 PSI2475 PSI6600 PSI0.67 IN0.22 LBS/FT
22200 PSI3300 PSI8800 PSI0.73 IN0.36 LBS/FT
1/2″ Flexible Metal Hose075 PSI113 PSI 0.50 IN0.76 IN3 IN5 IN0.17 LBS/FT
11100 PSI1650 PSI4400 PSI0.81 IN0.27 LBS/FT
21624 PSI2437 PSI6500 PSI0.87 IN0.38 LBS/FT
3/4″ Flexible Metal Hose050 PSI75PSI 0.75 IN  1.05 IN4 IN6 IN0.25 LBS/FT
1800 PSI1200 PSI3200 PSI1.10 IN0.44 LBS/FT
21250 PSI1874 PSI5000 PSI1.16 IN0.63 LBS/FT
1″ Flexible Metal Hose050 PSI75 PSI 1.00 IN  1.34 IN4.5 IN7 IN0.35 LBS/FT
1750 PSI1125 PSI3000 PSI1.42 IN0.63 LBS/FT
21000 PSI1500 PSI4000 PSI1.50 IN0.92 LBS/FT
1-1/4″ Flexible Metal Hose025 PSI37.5 PSI 1.25 IN  1.64 IN4 IN11 IN0.46 LBS/FT
2725 PSI1089 PSI2900 PSI1.72 IN0.83 LBS/FT
21100 PSI1650 PSI4400 PSI1.80 IN1.23 LBS/FT
1-1/2″ Flexible Metal Hose020 PSI30 PSI 1.50 IN  1.88 IN4.5IN12 IN0.49 LBS/FT
1565 PSI850 PSI2260 PSI1.95 IN0.83 LBS/FT
2886 PSI1330 PSI3550 PSI2.02 IN1.24 LBS/FT
2″ Flexible Metal Hose016 PSI24 PSI 2.00 IN  2.48 IN5 IN13 IN0.46 LBS/FT
1500 PSI750 PSI2000 PSI2.58 IN1.38 LBS/FT
2750 PSI1050 PSI3000 PSI2.69 IN2.15 LBS/FT
2-1/2″ Flexible Metal Hose012 PSI18 PSI 2.50 IN3.33 IN5 IN13 IN1.29 LBS/FT
1400 PSI600 PSI1600 PSI3.45 IN2.10 LBS/FT
2600 PSI900 PSI2400 PSI3.57 IN2.97 LBS/FT
3″ Flexible Metal Hose08 PSI12 PSI 3.00 IN3.89 IN7.5 IN16 IN1.29 LBS/FT
1289 PSI432 PSI1150 PSI4.01 IN2.38 LBS/FT
2431 PSI647 PSI1725 PSI4.13 IN3.35 LBS/FT
3-1/2″ Flexible Metal Hose07 PSI11 PSI 3.50 IN4.36 IN8 IN17 IN1.66 LBS/FT
1286 PSI428 PSI1140 PSI4.45 IN2.81 LBS/FT
2400 PSI600 PSI1600 PSI4.53 IN4.09 LBS/FT
4″ Flexible Metal Hose05 PSI7.5 PSI 4.00 IN4.83 IN10 IN20 IN1.96 LBS/FT
1250 PSI375 PSI1000 PSI5.03 IN3.15 LBS/FT
2375 PSI564 PSI1500 PSI5.23 IN4.47 LBS/FT
5″ Flexible Metal Hose03.5 PSI5.3 PSI 5.00 IN5.94 IN12 IN24 IN2.77 LBS/FT
1200 PSI300 PSI800 PSI6.10 IN4.08 LBS/FT
1 AP200 PSI300 PSI800 PSI6.08 IN3.99 LBS/FT
2245 PSI367 PSI980 PSI6.14 IN5.54 LBS/FT
2 AP245 PSI367 PSI980 PSI6.10 IN5.35 LBS/FT
1 2X245 PSI367 PSI980 PSI6.22 IN5.07 LBS/FT
1 2X-AP245 PSI367 PSI980 PSI6.18 IN5.06 LBS/FT
6″ Flexible Metal Hose03 PSI4.5 PSI 6.00 IN6.95 IN15 IN30 IN3.35 LBS/FT
1175 PSI263 PSI700 PSI7.15 IN4.79 LBS/FT
1 AP175 PSI263 PSI700 PSI7.13 IN4.77 LBS/FT
2225 PSI338 PSI900 PSI7.35 IN6.39 LBS/FT
2 AP225 PSI338 PSI900 PSI7.27 IN6.34 LBS/FT
1 2X275 PSI413 PSI1100 PSI7.20 IN6.05 LBS/FT
1 2X-AP250 PSI375 PSI1000 PSI7.18 IN5.99 LBS/FT
8″ Flexible Metal Hose02.7 PSI4.1 PSI 8.00 IN9.08 IN20 IN40 IN5.33 LBS/FT
1 2X212 PSI318 PSI850 PSI9.44 IN7.66 LBS/FT
1 2X-AP175 PSI263 PSI700 PSI9.40 IN7.48 LBS/FT
10″ Flexible Metal Hose02.2 PSI3.3 PSI 10.00 IN11.10 IN25 IN50 IN8.71 LBS/FT
1 2X175 PSI263 PSI700 PSI11.49 IN12.66 LBS/FT
1 2X-AP185 PSI277 PSI740 PSI11.44 IN13.65 LBS/FT
12″ Flexible Metal Hose01.81 PSI2.71 PSI 12.00 IN13.22 IN30 IN60 IN11.59 LBS/FT
1 2X160 PSI240 PSI640 PSI13.51 IN17.53 LBS/FT
1 2X-AP170 PSI256 PSI680 PSI13.47 IN18.61 LBS/FT

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For “R” Series applications that exceed 200° F contact manufacturer for suggestions.

Additional Options are available, Please fill out form below to get in touch.

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
