ICE™-S

Data Center Cooling Hose with Silicone Cover and Tube

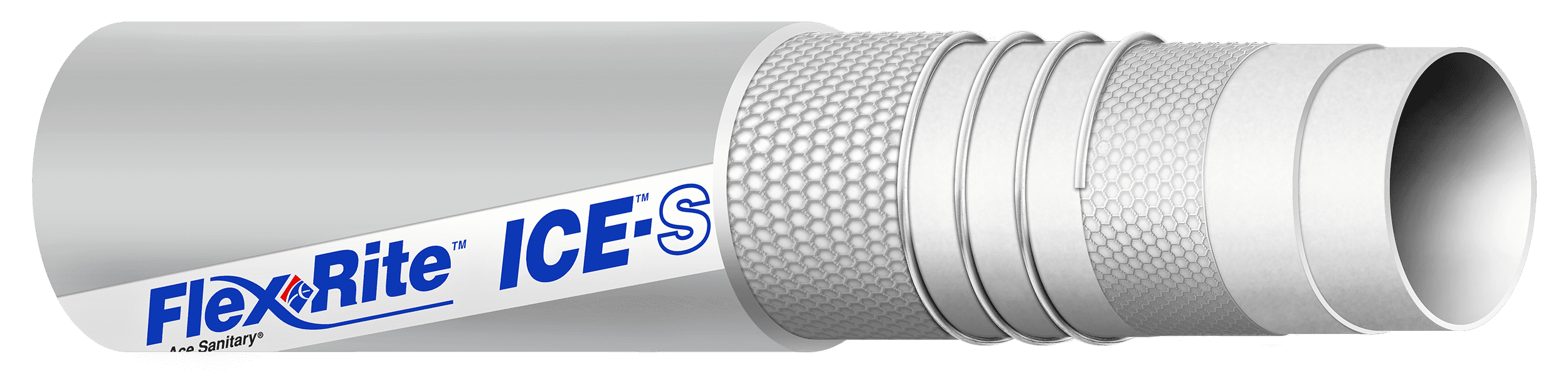

The Flex-Rite™ ICE™-S Coolant Hose is built for reliability, resilience, and high performance in demanding heat exchange systems. Engineered for both suction and delivery, it excels in data center cooling and other industrial environments where consistent fluid transfer and temperature resistance are critical. With excellent compatibility for propylene glycol, ethylene glycol, and other common coolants, ICE-S offers outstanding resistance to heat and harsh conditions—ensuring long service life and dependable performance.  Ace Sanitary’s ICE™ Series cover compound meets UL 94:2023 (V-0) requirements, hose meets UL 94:2023 (HB) requirements to ensure optimal performance.

This premium-grade hose features a durable stainless steel braid construction, designed to withstand elevated temperatures and rigorous operating demands.



Key Features

Product Datasheet

Key Features
  • Hygienic fitting integration for full drain-ability and high flow
  • Broadest temperature range and proven performance in critical heat exchange applications
  • Effective across a wide temperature range from -76° to 392°F (-60° to 200°C)
  • Specs include varying PSI working pressure, 27″ vacuum, and 130′ standard length
  • UL 94 HB compliant hose with UL 94 V-0 compliant cover
  • Tube: Platinum Cured Silicone.  Heat and glycol
  • Reinforcement: High temperature resistant fabric, stainless steel wire helix
  • Cover: Glossy cover, grey, silicone.  Abrasion, aging, ozone, and heat resistant.  Flame-retardant, self-extinguishing
  • Temperature Range: -76°F to 392°F (-60°C to 200°C)
Industry and Application
  • Specifically designed for data center cooling fluid
  • Flex-Rite™ ICE™ Coolant Hoses are engineered specifically for data cooling centers, including Coolant Distribution Unit
    (CDU) and Secondary Fluid Networks (SFN), with proven performance in multiple hyperscale installations.
Available Sizes
ModelI.D.O.D.Working PressureMin. Bend RadiusAppr. WeightVacuum in HGLength
ICE-S0500.50”0.91”225 psi2.36”0.28 lbs/ft27″130’
ICE-S0630.63”1.02”210 psi2.76”0.33 lbs/ft27″130’
ICE-S0750.75”1.14”195 psi3.15”0.37 lbs/ft27″130’
ICE-S1001.00”1.38”150 psi3.94”0.46 lbs/ft27″130’
ICE-S1251.25”1.65”120 psi5.12”0.56 lbs/ft27″130’
ICE-S1501.50”1.93”105 psi6.10”0.76 lbs/ft27″130’
ICE-S2002.00”2.44”90 psi8.27”1.05 lbs/ft27″130’
ICE-S2502.50”3.01”75 psi10.24”1.55 lbs/ft27″130’
ICE-S3003.00”3.50”60 psi12.20”1.82 lbs/ft27″130’
ICE-S4004.00”4.53”45 psi16.54”2.38 lbs/ft27″130’

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
