ICE™-P

Data Center Cooling Hose with Technopolymer Cover and RoHS-Compliant PTFE Tube

The Flex-Rite™ ICE™-P Coolant Hose is built for high-efficiency heat exchange in demanding data center cooling environments. Its low-friction tube ensures smooth, efficient fluid circulation, reducing energy loss and optimizing system performance. Compatible with PG25 and other deionized water-glycol coolant blends, ICE™-P helps prevent fluid contamination—supporting long-term system reliability. Ace Sanitary’s ICE™ Series cover compound meets UL 94:2023 (V-0) requirements, hose meets UL 94:2023 (HB) requirements to ensure optimal performance.

This hose features a metal-free, RoHS-compliant PTFE tube, offering chemical resistance and purity for advanced cooling applications.

Key Features

Product Datasheet

Key Features
  • Hygienic fitting integration for full drain-ability and high flow
  • Exceptional chemical compatibility and minimal extractables for long term fluid stability
  • Effective across a wide temperature range from -40° to 300°F (-40° to 149°C)
  • Specs include 150 PSI working pressure, 27″ vacuum, and 130′ standard length
  • UL 94 HB compliant hose with UL 94 V-0 compliant cover

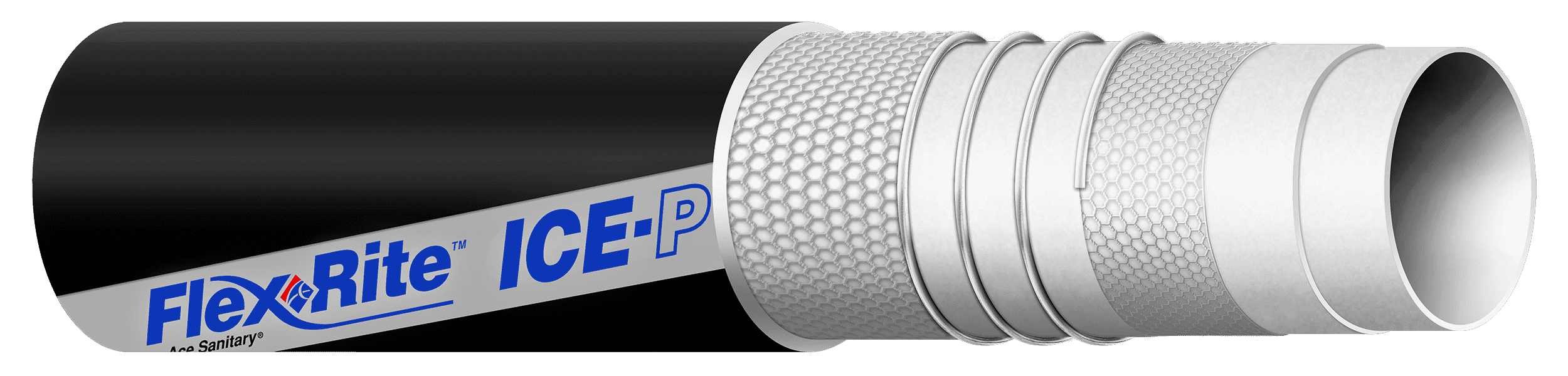

  • Tube: TEFLONTM  PTFE, co-extruded clear/white pigmented, smooth.
  • Reinforcement: Synthetic plies, galvanized wire helices
  • Cover: Smooth black technopolymer, flame resistant, cloth finish.  UL94V-0 Compliant.
  • Temperature Range: -40°F to 302°F (-40°C to 150°C)
Industry and Application
  • Designed exclusively for data center cooling fluid
  • Flex-Rite™ ICE™ Coolant Hoses are engineered specifically for data cooling centers, including Coolant Distribution Unit
    (CDU) and Secondary Fluid Networks (SFN), with proven performance in multiple hyperscale installations.
Available Sizes
ModelInner Diameter (I.D.)Outer Diameter (O.D.)Working Pressure (PSI)Min. Bend RadiusWeight per ft. (lbs)Vacuum (in Hg)Standard Length
ICE-P0501/2"0.94"1501.77"0.3027"130'
ICE-P0753/4"1.22"1502.56"0.3827"130'
ICE-P1001"1.46"1503.54"0.5727"130'
ICE-P1501 1/2"2.00"1505.12"0.6927"130'
ICE-P2002"2.52"1506.30"0.7927"130'

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
