ICE™

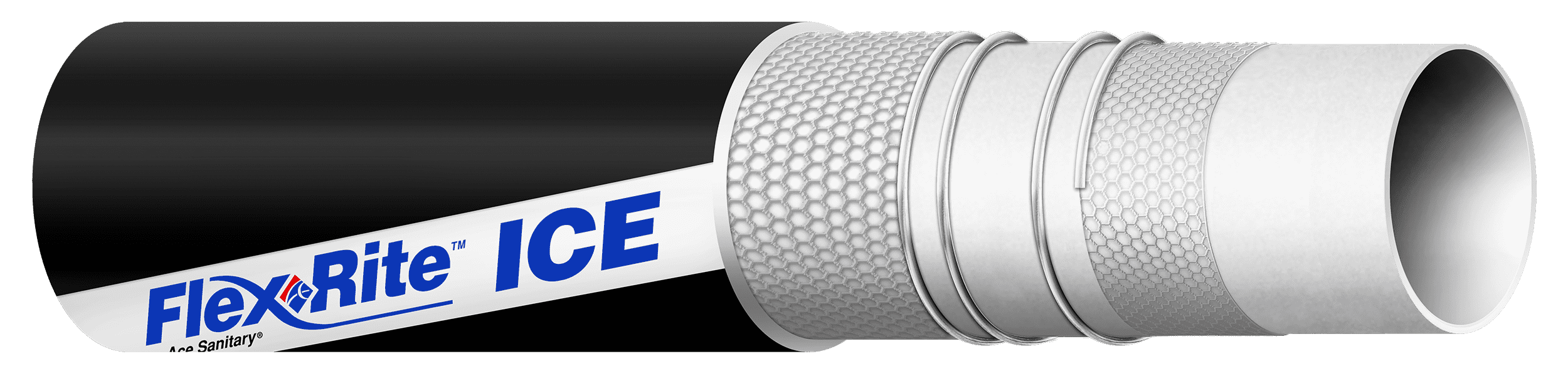

Data Center Cooling Hose with Peroxide-Cured EPDM Cover and Tube

Specifically engineered for the demanding cooling requirements of modern data centers, the Flex-Rite™ ICE™ Coolant Hose offers outstanding durability, flexibility, and long-term performance in fluid transfer applications. Its robust design supports a wide operating temperature range, ensuring consistent and reliable operation in critical cooling systems where uptime is essential. Ace Sanitary’s ICE™ Series cover compound meets UL 94:2023 (V-0) requirements, hose meets UL 94:2023 (HB) requirements to ensure optimal performance.

This high-performance hose features a peroxide-cured EPDM tube, built to withstand thermal stress and maintain integrity over extended service life.

Key Features

Product Datasheet

Key Features
  • Hygienic fitting integration for full drain-ability and high flow
  • Outstanding durability, flexibility and long-term performance
  • Effective across a wide temperature range from -40° to 300°F (-40° to 149°C)
  • Specs include varying working pressures, 27″ vacuum, and 130′ standard length
  • UL 94 HB compliant hose with UL 94 V-0 compliant cover
  • Tube: White peroxide-cured EPDM for fluid integrity
  • Reinforcement: Two polyester spirals with dual wire helix for durability and stability
  • Cover: Black EPDM synthetic rubber for abrasion and weather resistance
  • Temperature Range: -40°F to 300°F (-40°C to 149°C)
  • Flexibility: Kink-resistant for ease of use
  • Suction and Discharge: Engineered for optimal fluid transfer
Industry and Application
  • Made exclusively for data center cooling systems
  • Ideal for long-term, high-performance cooling fluid management
  • Flex-Rite™ ICE™ Coolant Hoses are engineered specifically for data cooling centers, including Coolant Distribution Unit
    (CDU) and Secondary Fluid Networks (SFN), with proven performance in multiple hyperscale installations.
Available Sizes
ModelInner Diameter (I.D.)Outer Diameter (O.D.)Working Pressure (PSI)Min. Bend RadiusWeight per ft. (lbs)Vacuum (in Hg)Standard Length
ICE0501/2"0.94"2252.0"0.2827"130'
ICE0753/4"1.22"2102.5"0.4727"130'
ICE1001"1.46"1953.5"0.5727"130'
ICE1501 1/2"2.00"1056.0"0.8827"130'
ICE2002"2.52"907.5"1.1327"130'
ICE2502 1/2"3.17"7510.5"1.8727"130'
ICE3003"3.70"6013.0"2.2427"130'
ICE4004"4.80"4517.0"3.3227"130'
ICE6006.00"7.05"4029.50"7.2727"40'

WARNING: Working pressure ratings for all Flex-Rite™ brand hoses are based on 70° F (ambient temperature). Working pressure and vacuum ratings will decrease as temperatures increase. For ICE-Series applications that exceed 200° F, contact the manufacturer for suggestions.
