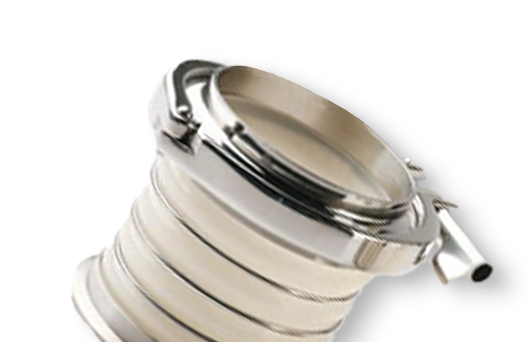

SPL Compensator

Sanitary Compensator

Ace Sanitary offers the first completely smooth compensator made for the pharmaceutical and food industries. Made from platinum-catalyzed silicone, the SPL Compensator complies with the requirements of the FDA BGA 21 CFR 177.2600 and USP CLASS VI standards.

Key Features

Product Datasheet

Key Features

TEMPERATURE RANGE -58°F to +356°F (-50°C to 180°C)

Available Sizes

MODEL NUMBER	Ø NOMINAL CLAMP (INCH)	Ø CLAMP HEAD (MM)	INNER Ø (MM)	OVERALL LENGTH (INCHES) (MM)	WORKING PRESSURE (BAR)
SPL100	1.0"	50.5	22.1	4.0" (102)	1
SPL150	1.5"	50.5	34.7	4.0" (102)	0.90
SPL200	2.0"	64	47.5	4.0" (102)	0.80
SPL250	2.5"	77.5	60	4.0" (102)	0.70
SPL300	3.0"	91	73	6.0" (152)	0.60
SPL400	4.0"	119	97.6	6.0" (152)	0.50
SPL500	5.0"	155	125	7.0" (178)	0.40
SPL600	6.0"	183	150	7.0" (178)	0.30
SPL800	8.0"	233.5	200	7.0" (178)	0.20
SPL1000	10.0"	270	250	8.0" (204)	0.10

Fast lead Times, Expedited Quoting, No Minimum Order Quantity
